ABB EG1911 19-Inch Rack Panel - CE Declaration
Part Number: EG1911
Quick Summary
ABB EG1911 is an aluminium 19-inch rack panel for control and automation boards in IS2 automation cabinets. It addresses mounting compatibility and space constraints common in compact control panels. Key certifications include CE Declaration of Conformity, RoHS compliance, and ETIM classifications for mounting accessories to ease global procurement. As a robust aluminium panel designed for IS2 enclosures and AM2 cabinets, it streamlines installations, reduces lead times, and improves serviceability while supporting standard 19-inch rack frames and modular depth options for scalable architectures.
Product Information
Extended Description

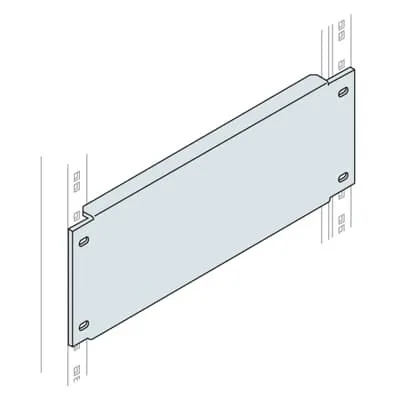

EG1911 ABB: Aluminium panel for 19” rack frame-11HE H=488mm
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Aluminium
Options Provided
5. Panels for 19" rack frames aluminium
Remarks
ETIM
RoHS Information
1STC860065
RoHS Date
20140108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
482 mm
Product Net Height
488 mm
Product Net Depth / Length
488 mm
Product Net Weight
2.240 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.290 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
The 482.6 mm mounting set delivers precise alignment for 19-inch rack frames, enabling repeatable installations and reduced commissioning time, which translates to lower on-site labor costs and fewer reworks in automation cabinets. The aluminium construction provides excellent rigidity and corrosion resistance, improving long-term durability in harsh industrial environments and lowering maintenance intervals for critical control systems. The option to choose between kit or pre-assembled mounting simplifies procurement and installation, letting engineers deploy the panel either as a ready-to-install module or as a custom-fit assembly within existing frames. With a net width of 482 mm and height of 488 mm, the panel fits standard IS2 and AM2 enclosures, while reference depths from 300 to 1000 mm support diverse cabinet footprints and backplane configurations. The product weight of 2.240 kg (2.290 kg packaged) yields a solid, yet manageable, solution for field upgrades and retrofits. Compliance with RoHS and the CE Declaration of Conformity, alongside ETIM and eClass classifications, ensures procurement teams meet regulatory and interoperability requirements. This panel also aligns with the IS2 Enclosures Technical Catalogue 2024, providing documented compatibility with current ABB rack ecosystems and simplifying future component substitutions.
Get a Quick Quote for a ABB EG1911
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG1911?
Enquire Now
FAQs
The EG1911 ships as a 11HE compatible aluminium panel with a 482.6 mm mounting set. It can be delivered as a kit or pre-assembled and is sized for standard 19-inch rack frames, allowing straightforward bolt-in installation into AM2 cabinets with compatible depth ranges (300–1000 mm). Use the mounting guidelines from the IS2 Enclosures Catalogue and verify backplane clearance before tightening to specification.
Yes. The panel is specified for IS2 Enclosures for Automation and AM2 cabinets, ensuring compatibility with common ABB IS2 enclosure dimensions and mounting standards. Choose the correct reference depth to match your enclosure, and it will mount securely within the 19-inch rack structure.
Key dimensions are 482 mm net width and 488 mm net height, with a reference depth range of 300 to 1000 mm. The net weight is 2.240 kg, with a packaged gross weight of 2.290 kg, supporting easy handling during installation and retrofits.
The EG1911 carries CE Declaration of Conformity and RoHS compliance, with WEEE categorization noting it is not in WEEE scope. ETIM classifications for mounting accessories and eClass V11.1 codes support procurement and interoperability across European supply chains, while IS2 documentation confirms catalogue compatibility for 2024 enclosures.
The aluminium 19-inch rack panel reduces installation time, enhances mounting rigidity, and supports future expandability with depth options. Its compatibility with IS2 and AM2 enclosures minimizes mismatch risks, while RoHS and CE compliance mitigate regulatory risk and simplify supplier onboarding, contributing to lower total cost of ownership over the panel’s lifecycle.
