ABB EG2000 Control & Automation Board - IS2 Enclosures
Part Number: EG2000
Quick Summary
ABB EG2000 is a control and automation rack system designed for IS2 enclosure applications. Engineers often contend with rigid frames, limited depth options, and time-consuming cabinet installations. Key certifications include CE conformity, RoHS compliance (RoHS Date 20250108), and REACH information confirming no substances above 0.1% by mass, helping ensure regulatory readiness and safer procurement. The fixed 19-inch rack structure uses galvanized steel with a pre-assembled kit and optional L-shaped uprights, delivering consistent fit and robust mechanical performance. By simplifying installation and enabling scalable configurations across IS2 enclosures, it offers tangible business value in reduced downtime and faster project delivery.
Product Information
Extended Description

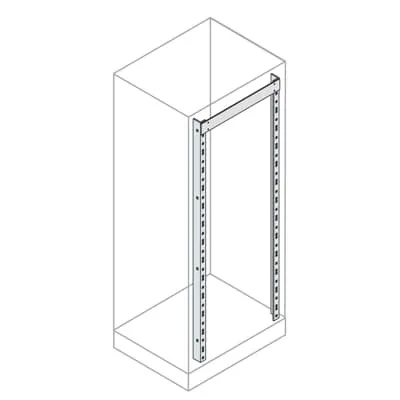

EG2000 ABB: Fixed rack frame 2000x600mm fisso 42HE
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
1. "L" shaped uprights for fixed frame
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
40 mm
Product Net Height
2000 mm
Product Net Depth / Length
30 mm
Product Net Weight
3.680 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.760 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: 482.6 mm (19 inch) mounting set provides universal compatibility with IS2 enclosures for automation. Benefit: accelerates integration of control and automation boards with precise alignment, reducing commissioning time. Application: ideal for IS2 Enclosures in automation cabinets. Feature: Galvanized steel sheet construction delivers corrosion resistance and long-term durability in harsh industrial environments. Benefit: lowers maintenance costs and extends cabinet life in factory floors and outdoor installations. Application: suitable for rugged factory automation deployments. Feature: Pre-assembled kit option and L-shaped uprights for fixed frames streamline mounting. Benefit: minimizes field assembly errors and speeds up retrofit projects. Application: retrofits and new builds where fast deployment matters. Feature: Flexible depth configuration with reference depths from 300 mm to 1000 mm and a height of 2000 mm. Benefit: supports a wide range of control gear while keeping a compact footprint. Application: scalable solutions for diverse automation cabinet requirements. Feature: RoHS and REACH compliance plus CE declaration of conformity, with ETIM mounting accessories classification. Benefit: regulatory assurance, easier supplier qualification, and smoother procurement. Application: health-and-safety and environmental compliance across global plants. Feature: Manageable weight and packaging for shipping: net weight 3.680 kg; package weight 3.760 kg. Benefit: predictable logistics and easier handling during installation. Application: project planning and lead time optimization.
Get a Quick Quote for a ABB EG2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG2000?
Enquire Now
FAQs
The EG2000 provides a 482.6 mm (19 inch) mounting set and a pre-assembled rack structure designed for IS2 enclosures, enabling quick, error-free mounting of control and automation boards in automation cabinets.
Key specs include a 2000 mm height, 600 mm reference width, 30 mm reference depth, and a 19-inch mounting format. It uses galvanized steel sheet and supports reference depths from 300 to 1000 mm for flexible gear placement.
Yes. The EG2000 carries a CE Declaration of Conformity, RoHS information with RoHS date 20250108, and REACH declaration indicating compliance with regulatory limits and no substances above 0.1% by mass.
Absolutely. It supports reference depths of 300–1000 mm and a fixed frame height of 2000 mm, with a flexible 600 mm reference width, making it suitable for a range of automation equipment in IS2 enclosures.
The fixed, pre-assembled kit reduces installation time and field assembly errors, lowers maintenance costs due to galvanized steel durability, and speeds project delivery for cabinet retrofits and new builds, delivering predictable timelines and improved uptime.
