ABB EG2003K Control and Automation Board - CE
Part Number: EG2003K
Quick Summary
EG2003K is a control and automation board designed for IS2 enclosure systems in industrial automation. This solution helps you standardize mounting in 19-inch racks while reducing integration time and wiring complexity. The enclosure ecosystem relies on robust certifications to ensure compliance and safety in harsh environments, including CE, RoHS, and REACH declarations. By combining a galvanized steel frame with a kit or pre-assembled mounting option, ABB delivers a reliable foundation for scalable control architectures, enabling faster project delivery, reduced field-service costs, and improved lifecycle management for automation cabinets.
Product Information
Extended Description

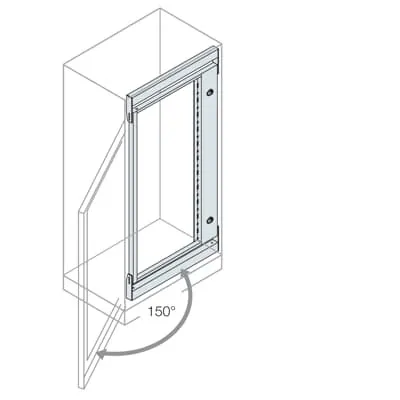

EG2003K ABB: Eccentric swing rack frame 2000x800mm gir.decen.40HE
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
1. "L" shaped uprights for fixed frame
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
50 mm
Product Net Height
2000 mm
Product Net Depth / Length
705 mm
Product Net Weight
18.5 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
18.500 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: 19 inch mounting set (482.6 mm) standardizes panel layout and simplifies rack integration, boosting installation speed and reducing custom fabrication time in IS2 automation enclosures. This translates to lower labor costs and shorter time-to-operational for control cabinets used in process automation projects. Feature → Business Impact → Application: Kit or pre-assembled mounting type provides flexible deployment options to fit existing sites and retrofit programs, improving project adaptability and minimizing downtime during assembly. Feature → Business Impact → Application: Galvanized steel construction ensures corrosion resistance in harsh industrial environments, extending cabinet life and reducing maintenance cycles for packaging and factory automation lines. Feature → Business Impact → Application: 19" rack structure and L-shaped uprights offer robust mechanical support, enabling reliable mounting of control boards and modules in IS2 enclosures, with predictable vibration performance in rail-based installations. Feature → Business Impact → Application: RoHS, REACH, and CE declarations verify regulatory compliance, reducing risk during audits and enabling global deployments of automation cabinets. Feature → Business Impact → Application: Reference depth options (300–1000 mm) and fixed dimensions (2000 mm height, 800 mm width) deliver design consistency across projects, accelerating procurement and ensuring compatibility with IS2 catalogue components. Feature → Business Impact → Application: ETIM and eClass classifications streamline parts discovery and procurement workflows, improving supplier collaboration and inventory control. Feature → Business Impact → Application: Weight and net dimensions (18.5 kg; 50 mm width) support precise mass budgeting and enclosure cooling calculations, contributing to reliable thermal management in high-density control panels.
Get a Quick Quote for a ABB EG2003K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG2003K?
Enquire Now
FAQs
EG2003K supports both a kit configuration and pre-assembled mounting. Start by selecting the 482.6 mm 19" mounting set to align with IS2 enclosure rails, then attach using the included L-shaped uprights for a fixed frame. This approach minimizes field assembly time and ensures a secure, vibration-resistant cabinet setup in automation environments.
Key specs include 2000 mm reference height, 800 mm reference width, 705 mm reference depth, and a net weight of 18.5 kg. The mounting structure is galvanized steel, supports 19" rack compatibility, and is suitable for IS2 enclosures. The assembly is offered as a kit or pre-assembled for flexible project delivery.
Yes. The 19" rack structure with fixed L-shaped uprights supports robust mounting of control boards in IS2 automation enclosures, offering reliable mechanical stability and scalable depth options. ETIM, eClass classifications, and CE/RoHS compliance further enable predictable procurement and regulatory readiness in manufacturing environments.
The EG2003K carries a CE Declaration of Conformity for IS2 enclosures, RoHS information and dates, and REACH declaration with true REACH information indicating no substances above 0.1 mass percentage. It is also categorized under WEEE as not in scope, aligning with end-of-life considerations for European projects.
Investing in the EG2003K yields faster installation, reduced commissioning time, and lower field retrofit costs due to its standardized 19" mounting and kit/pre-assembled options. The corrosion-resistant galvanized steel frame and regulatory compliance reduce maintenance and audit risk, delivering a favorable total cost of ownership for automation cabinets.
