ABB EG2005 Rack Frame - 19" Mounting Kit CE RoHS
Part Number: EG2005
Quick Summary
ABB EG2005 is a rack frame solution for IS2 automation enclosures used in control cabinets. It addresses the challenge of organizing 19-inch equipment within constrained factory layouts without compromising accessibility. CE conformity, RoHS and REACH compliance ensure regulatory readiness and long-term reliability. The design supports IS2 enclosures for automation and functions as a robust 19-inch rack structure, delivering install-ready infrastructure that scales with your automation projects.
Product Information
Extended Description

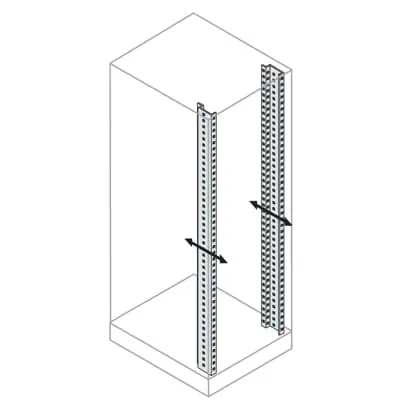

EG2005 ABB: Rack frame for server cabinet 2000x800 HXW
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
3. Cranked shaped uprights, Brackets, Crosspieces
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
130 mm
Product Net Height
2000 mm
Product Net Depth / Length
30 mm
Product Net Weight
7.720 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
8.120 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: The ABB EG2005 uses a standard 19-inch rack structure and a precise 482.6 mm mounting set designed to align ABB control boards exactly where they belong inside IS2 automation enclosures. This alignment minimizes misfits, reduces rework, and accelerates commissioning by ensuring components sit squarely during shipment, on-site assembly, and initial power-up, helping engineers maintain project schedules even when panel space is constrained. Business Impact: Precise mounting reduces diagnostic time, lowers risk of wiring interference, and streamlines maintenance cycles—translating to higher uptime and lower total cost of ownership for automation cabinets. Application: Ideal for control and automation boards requiring reliable 19-inch mounting within IS2 enclosures used across manufacturing and process automation projects.
Get a Quick Quote for a ABB EG2005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG2005?
Enquire Now
FAQs
The EG2005 is designed for IS2 enclosures and uses a 19-inch mounting set at 482.6 mm. It ships as a kit or pre-assembled, enabling straightforward mounting of ABB control boards with standard 19" rack hardware, while maintaining proper clearances for cabling and service access.
Key dimensions include a 2000 mm reference height, 300–400 mm depth options, and 400–1600 mm width range across reference depths. The product net weight is 7.720 kg, with a package gross weight around 8.120 kg, aiding space budgeting and shipping calculations.
Yes. EG2005 is specified as suitable for IS2 Enclosures for Automation and belongs to the product class Control and Automation Board. Its 19-inch rack structure and mounting kit design are optimized for control and automation hardware within IS2 enclosures.
The EG2005 carries CE conformity for IS2, RoHS information with a 20250108 RoHS date, and a REACH declaration indicating no substances above 0.1 mass percentage. This helps with regulatory approvals, supplier audits, and cross-border procurement.
The pre-assembled option reduces on-site labor and time-to-commission, while galvanized steel construction offers durable protection against corrosion. Modular uprights, brackets, and crosspieces support scalable installations, lowering future replacement costs and enabling faster upgrades in multi-site automation deployments.
