ABB EG2280 Control & Automation Board - CE Declaration
Part Number: EG2280
Quick Summary
ABB EG2280 is a control and automation board for 19-inch rack enclosures used in IS2 automation and control systems. Engineers often struggle with modular mounting compatibility and regulatory alignment across varying frame depths. It carries CE conformity, RoHS and REACH declarations, providing regulatory assurance for harsh industrial environments. Designed to integrate with System pro E control and IS2 enclosure families, it delivers reliable, scalable performance while simplifying procurement and installation. This combination reduces integration risk and supports faster project delivery, aligning with broader maintenance and total cost of ownership goals.
Product Information
Extended Description

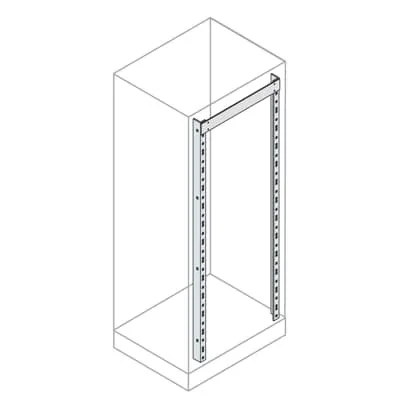

EG2280 ABB: 19" Rack Fixed Frames 47 HE2200x800mm
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Automation and Control Enclosures (System pro E control)
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
1. "L" shaped uprights for fixed frame
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
40 mm
Product Net Height
2100 mm
Product Net Depth / Length
130 mm
Product Net Weight
11.5 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
11.73 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
IS2 instruction handbook 2024
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
The EG2280 uses a 19-inch rack mounting kit designed for fixed-frame IS2 enclosures, delivering faster deployment and standardized integration across projects. The galvanized steel construction delivers superior durability and corrosion resistance in demanding environments, reducing maintenance costs and downtime. Included L-shaped uprights and the option for pre-assembled kits simplify installation, minimize on-site fabrication, and shorten commissioning timelines. With reference depths ranging from 300 to 1000 mm, the frame supports scalable configurations for varying components and devices, improving space utilization and future expansion. Compliance features such as CE conformity, RoHS and REACH declarations reduce regulatory risk and help maintain supplier qualification when bidding on larger automation programs. The EG2280 also aligns with ETIM 8/9 classifications for mounting accessories, aiding procurement systems and catalog searchability.
Get a Quick Quote for a ABB EG2280
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG2280?
Enquire Now
FAQs
Installation begins with selecting the 19-inch rack structure kit and confirming the frame depth matches your IS2 enclosure. Use the provided L-shaped uprights for fixed frames, secure the frame into the enclosure, and connect mounting rails per the IS2 instruction handbook. The kit can be ordered pre-assembled to reduce field labor and ensure square alignment during rack integration.
Key specs include a 800 mm reference width, 2200 mm reference height, 300 mm reference depth (with options up to 1000 mm), a galvanized steel frame, and a net weight around 11.5 kg. It is designed as a 19-inch rack structure compatible with System pro E control IS2 enclosures and supports fixed-frame mounting.
Yes. The EG2280 carries CE conformity, RoHS information with an RoHS date of 20250108, and a REACH declaration indicating no substances above 0.1 mass percentage. WEEE classification notes the product is not within WEEE scope, which simplifies regulatory handling across regions.
The EG2280 supports reference depths of 300, 400, 500, 600, 800, and 1000 mm. This depth flexibility enables you to accommodate a wide range of components within a single IS2 enclosure lineup, reducing the need for multiple frame variants and enabling scalable deployment across projects.
The EG2280 delivers faster deployment through pre-assembled options and standardized 19-inch rack mounting, lowering field labor costs. Its durable galvanized steel construction reduces maintenance and replacement needs in harsh environments, while CE/RoHS/REACH compliance lowers regulatory risk in bids and audits. Overall, expect shorter project timelines, predictable maintenance planning, and improved lifecycle cost of ownership.
