ABB EH0004 Control and Automation Board - IS2 Enclosures
Part Number: EH0004
Quick Summary
ABB EH0004 Control and Automation Board enables modular control within IS2 enclosure systems for automation panels. Engineers often face mounting variation and compatibility gaps when upgrading legacy cabinets. This solution provides CE conformity, RoHS compliance through 2025-01-08, and REACH declarations to support regulatory risk management. With a preassembled mounting kit, 19'' rack compatibility, and a galvanized steel frame, it streamlines procurement and accelerates installation—lowering total cost of ownership. Designed for durability in harsh factory environments, the EH0004 pairs with existing ABB IS2 enclosures to simplify procurement, inventory, and service contracts. Industry teams gain predictable lead times and reduced field engineering effort thanks to standardized 19 inch rack mounting and preassembled options.
Product Information
Extended Description

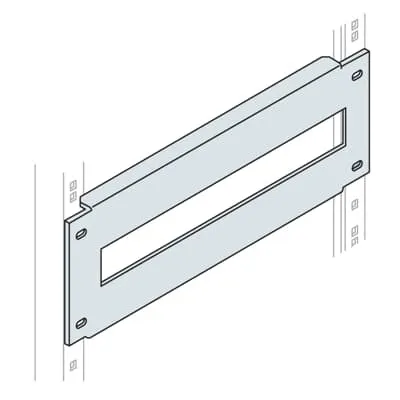

EH0004 ABB: Panel for modular device 4HE
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Surface Finishing
Orange Peel, RAL 7035
Material
Galvanized Steel sheet
Options Provided
8. 19" rack frame - Equipment
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
482.6 mm
Product Net Height
177.5 mm
Product Net Depth / Length
12.7 mm
Product Net Weight
1.2350 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.235 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
482.6 mm (19 inch) mounting set standardizes rack alignment across ABB IS2 enclosures. This reduces field engineering time and minimizes misalignment during panel swaps, cutting commissioning durations in automation cabinets. The setup is ideal for 4HE modular devices and standardized rack systems, enabling quick swaps without rework. IS2 Enclosures for Automation compatibility guarantees a fit with existing ABB frames, reducing procurement risk and stocking complexity in automation projects. It also simplifies warranty and service planning because components are designed to work together in a modular rack ecosystem. Material is galvanized steel with an orange peel finish in RAL 7035, delivering durable corrosion resistance for harsh industrial environments and maintaining a professional appearance over time. This combination lowers maintenance costs and minimizes downtime due to cosmetic wear or rust. The package includes an 8. 19" rack frame, which reduces the need for separate purchases and speeds on-site installation. It also strengthens cable management and overall system integration within automation cabinets. Mounting Type offers a kit or preassembled option, letting customers choose a ready-to-install configuration that minimizes field assembly while preserving serviceability. The RoHS information dated 20250108 and the REACH declaration support regulatory compliance, while the CE Declaration of Conformity IS2 ensures broader market access and customer confidence. The product is designed for scalable installations with reference depth options from 300 to 1000 mm and height ranges from 1400 to 2200 mm, enabling flexible footprints across a variety of automation projects.
Get a Quick Quote for a ABB EH0004
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH0004?
Enquire Now
FAQs
The EH0004 is designed to slot directly into ABB IS2 enclosures using the included 482.6 mm mounting profile and 19 inch rack structure. It supports preassembled and kit mounting options, aligning with 4HE modular device configurations. This compatibility minimizes integration risks and simplifies maintenance planning by ensuring consistent interfaces across ABB automation cabinets.
Key mechanical specs include a product net width of 482.6 mm, net height of 177.5 mm, and net depth of 12.7 mm, with a weight of 1.235 kg. The frame is galvanized steel with an orange peel finish in RAL 7035 to withstand industrial environments. These dimensions and materials support durable, long-term installation in automation panels.
Yes. The EH0004 package carries CE conformity (Declaration of Conformity IS2) and RoHS compliance dated January 8, 2025, along with a REACH declaration. REACH information states no substances exceeding 0.1 mass percent, which helps with regulatory risk management and supplier qualification for automated control projects.
EH0004 provides a preassembled mounting option plus a kit option, reducing field assembly time and allowing faster site deployment. The included 8. 19" rack frame supports standard cabling layouts and equipment mounting. Its alignment with IS2 enclosures also streamlines procurement, inventory management, and service contracts across automation projects.
Documentation includes the IS2 Enclosures Technical Catalogue 2024 as a Data Sheet reference, installation instructions 1STM604121R0006, and an official Declaration of Conformity for CE. The ETIM classification EC002625 for mounting accessories is provided, along with the REACH and RoHS declarations to assist with compliant procurement and ongoing support.
