ABB EH0018 Control and Automation Board - CE Certified
Part Number: EH0018
Quick Summary
EH0018 is ABB's control and automation board designed for AM2 Cabinets and IS2 Enclosures in automation projects. Users often face space constraints and rigid wiring layouts when retrofitting compact enclosures, making rapid deployment difficult. Key certifications include CE conformity, RoHS compliance, and REACH declaration to support regulatory alignment across markets. With a 12-modular apparatus kit and pre-assembled mounting options, EH0018 delivers predictable install times, reduced field wiring errors, and consistent enclosure standards for scalable control cabinets.
Product Information
Extended Description

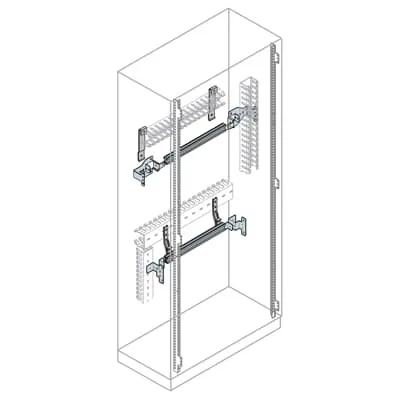

EH0018 ABB: DIN rail and fixing supports (18 DIN mod.) W=600mm
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
2. DIN rail Kit with front wiring duct
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
449.5 mm
Product Net Height
99 mm
Product Net Depth / Length
96 mm
Product Net Weight
0.840 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.850 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: 12 modular apparatus for flexible configurations → Business Impact: reduces BOM complexity and stocking costs while enabling rapid reconfiguration as control logic evolves → Application: modular control panels in AM2 cabinets and IS2 enclosures. Feature: Kit or pre-assembled mounting options → Business Impact: faster installation, lowers on-site labor risk, and minimizes field wiring mistakes → Application: retrofit projects and new builds with tight schedules. Feature: Front wiring duct included with DIN rail kit → Business Impact: cleaner wiring paths, easier maintenance, and improved thermal management → Application: high-density control panels in automated lines. Feature: Durable Pickled steel sheet with Orange Peel, RAL 7035 finish → Business Impact: corrosion resistance, consistent aesthetics, and long-term enclosure integrity → Application: harsh factory environments and compliant industrial interiors. Feature: Clear dimensional references and compatibility with reference depths/heights → Business Impact: predictable fit within standard IS2/AM2 footprints, reducing enclosure rework → Application: modular enclosures and scalable automation cabinets. Feature: CE, RoHS, and REACH compliance with ETIM class EC000747 alignment → Business Impact: regulatory readiness and smoother supplier qualification → Application: compliant deployments across industries. Feature: 2. DIN rail Kit with front wiring duct option → Business Impact: faster wiring, easier future upgrades, and standardized installation practices → Application: panel builders seeking repeatable manufacturing processes. Insight: The EH0018 design aligns with IS2 Enclosures Technical Catalogue guidance, supporting industry-standard assembly practices and easier cross-sell to customers using ABB and IS2 ecosystems.
Get a Quick Quote for a ABB EH0018
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH0018?
Enquire Now
FAQs
The EH0018 installation uses the included 12-modular kit and can be mounted either as a pre-assembled unit or as a kit. Use the DIN rail kit with the front wiring duct to organize cables neatly, then secure the enclosure using the standard mounting points. This approach minimizes field wiring errors and speeds up commissioning.
EH0018 has a product net width of 449.5 mm, net height of 99 mm, and net depth of 96 mm, with a net weight of 0.840 kg. Package weight is approximately 0.850 kg. These dimensions fit typical AM2/IS2 cabinet footprints and support predictable enclosure planning.
Yes. EH0018 is designed for AM2 cabinets and IS2 enclosures, matching the control and automation board classification and offering compatible mounting, modular expansion, and pre-assembled options that streamline installation in IS2 environments.
EH0018 carries CE conformity, RoHS compliance, and a REACH declaration, plus ETIM classification EC000747. These certifications ensure regulatory compliance, safer material usage, and standardized product categorization, which simplifies procurement and quality assurance across regions.
The 12-modular kit with pre-assembled mounting, plus the front wiring duct and DIN rail option, reduces installation time and labor costs, minimizes wiring errors, and supports scalable configurations. Over the life of the cabinet, these features translate to faster changes, easier maintenance, and lower total cost of ownership.
