ABB EH0024 Control and Automation Board - CE/ETIM EC000747
Part Number: EH0024
Quick Summary
ABB EH0024 control and automation board enables compact, panel-level automation for AM2 cabinets and IS2 enclosures. This compact, pre-assembled kit reduces wiring complexity and speeds panel commissioning, addressing tight schedules and field installation risks. It carries CE conformity with RoHS and REACH compliance and adheres to ETIM EC000747 for streamlined procurement and regulatory checks. Finish and dimensions support scalable automation: reliable enclosure integration, DIN rail compatibility, and ready-made mounting options across AM2 and IS2 configurations, helping OEMs and integrators deliver consistent performance while reducing sourcing variability. In practice, EH0024 supports rapid modernization, easier maintenance, and predictable lifecycle management for evolving automation projects.
Product Information
Extended Description

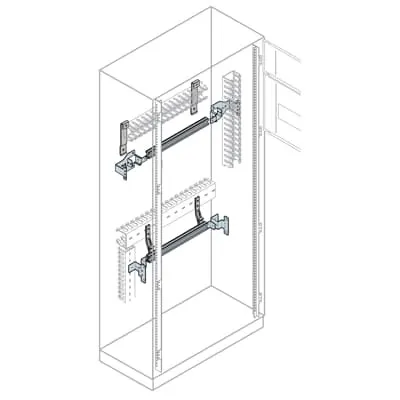

EH0024 ABB: DIN rail and fixing supports (24 DIN mod.) W=600mm
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
2. DIN rail Kit with front wiring duct
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
449.5 mm
Product Net Height
99 mm
Product Net Depth / Length
96 mm
Product Net Weight
0.650 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.770 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: 24 modular DIN rail components with a DIN rail kit and front wiring duct. Business Impact: Standardizes panel hardware, reduces wiring errors, and shortens commissioning time, delivering measurable labor cost savings. Application: Ideal for AM2 cabinets and IS2 enclosures in factory automation. Feature: Mounting Type Kit or Pre-assembled. Business Impact: Flexible deployment lets engineers choose between rapid assembly or customized integration, cutting design lead times and enabling scalable deployments. Application: Suitable for evolving automation layouts across multi-line facilities. Feature: Material and finish - pickled steel sheet with Orange Peel, RAL 7035; opaque door finish. Business Impact: Enhances durability in harsh factory environments, minimizes corrosion risk, and provides a uniform, maintenance-friendly appearance. Application: Heavy-duty automation panels and IS2 enclosure interiors. Feature: External dimensions and reference options - Product Net Width 449.5 mm, Net Height 99 mm, Net Depth 96 mm; Reference Depth 300–1000 mm; Reference Height 1400–2200 mm; Reference Width 400–1600 mm. Business Impact: Predictable footprint fits a range of standard module depths and heights, reducing design compromises and enabling modular expansion. Application: Customizable enclosures and scalable control architectures. Feature: Compliance and certifications - RoHS, REACH, CE Declaration, ETIM EC000747; WEEE scope notes. Business Impact: Simplifies regulatory audits, improves supplier consolidation, and accelerates procurement cycles. Application: Regulatory-compliant automation projects with traceable specifications. Feature: Finish and mounting accessories - Orange Peel surface in RAL 7035; front wiring duct included; 2. DIN rail kit with front wiring duct. Business Impact: Durable, consistent aesthetics plus practical wiring organization lower maintenance time and improve serviceability. Application: Repeated maintenance cycles and ongoing upgrades in production lines.
