ABB EH0029 Control and Automation Board - CE/RoHS
Part Number: EH0029
Quick Summary
ABB EH0029 is a robust Control and Automation Board designed for AM2 cabinets and IS2 automation enclosures. It addresses common wiring and mounting challenges by offering a pre-assembled kit or modular options with DIN rail compatibility and front wiring duct. The enclosure carries CE conformity along with RoHS and REACH compliance, ensuring regulatory alignment for everyday industrial environments. With a modular 12-point apparatus and a pickled steel shell finished in orange peel RAL 7035, it delivers reliable protection and easy maintenance. This combination helps you accelerate panel assembly, reduce field wiring time, and improve serviceability while maintaining cost control and scalability for future automation needs.
Product Information
Extended Description

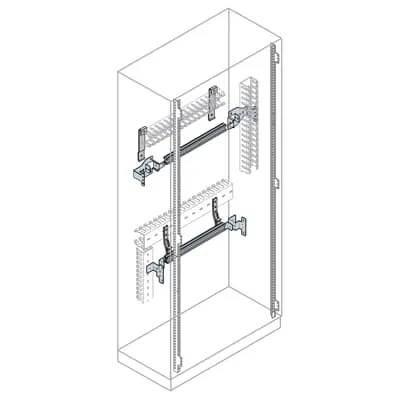

EH0029 ABB: DIN rail and fixing supports (29 DIN mod.) W=800mm
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
2. DIN rail Kit with front wiring duct
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
649.5 mm
Product Net Height
99 mm
Product Net Depth / Length
96 mm
Product Net Weight
1.210 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.230 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: 12 modular apparatus enables flexible control topology, reducing rework and enabling rapid reconfiguration for changing automation tasks across AM2 cabinets. This translates to shorter downtime and improved project ROI when integrating IS2 automation enclosures. The kit or pre-assembled mounting option speeds installation and lowers on-site labor, especially in high-mix, low-volume production lines. Orange peel RAL 7035 coated pickled steel provides durable surface protection with a professional finish that resists wear in harsh environments, enhancing enclosure longevity and reducing repainting costs. Dimensions W 400 mm, H 1400 mm, D 300 mm fit standard AM2 IS2 footprints, maximizing space utilization and simplifying fit checks. RoHS/REACH compliance minimizes regulatory risk and simplifies supplier audits, while the included DIN rail kit with front wiring duct streamlines wiring and future upgrades. ETIM and eClass classifications support data-driven procurement, reducing sourcing complexity.
Get a Quick Quote for a ABB EH0029
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH0029?
Enquire Now
FAQs
ABB EH0029 can be ordered as a pre-assembled unit or as a modular kit with 12-point apparatus and a DIN rail kit with front wiring duct. This flexibility speeds field wiring, reduces on-site assembly time, and helps integrators tailor the panel layout to existing AM2 cabinet footprints without compromising accessibility.
Yes. The design includes a DIN rail kit and front wiring duct as provided options, enabling clean cable management and straightforward retrofits. This compatibility simplifies integration with standard automation components and supports efficient maintenance access.
ABB EH0029 carries a CE Declaration of Conformity and adheres to RoHS and REACH directives, ensuring equipment safety, restricted substance controls, and responsible supply chain compliance across manufacturing environments.
Yes. The enclosure is offered as a kit or pre-assembled solution. This enables rapid deployment in automation projects, reduces assembly variability, and allows customers to balance upfront assembly effort with on-site installation speed.
The board is designed around W 400 mm, H 1400 mm, D 300 mm with a product net weight of about 1.210 kg. These dimensions fit standard AM2 and IS2 enclosure footprints, supporting straightforward rack mounting and predictable space planning for panel builds.
