ABB EH0036 Control Board for Automation - CE Certification
Part Number: EH0036
Quick Summary
ABB EH0036 is a control and automation board enclosure designed for AM2 cabinets and IS2 enclosures. Installing bulky, mismatched enclosures can slow projects and reduce reliability; EH0036 provides a ready-made, modular solution. It carries CE conformity, RoHS compliance and REACH declarations to support regulated environments, with ETIM classification EC000747 clarifying its role in the product taxonomy. The combination of a sturdy pickled steel sheet body and a durable orange peel surface finish in RAL 7035 stands up to industrial wear. With 12 modular apparatus capacity and options for kit or pre-assembled mounting, it enables fast configuration, predictable lead times, and easier maintenance across automation projects.
Product Information
Extended Description

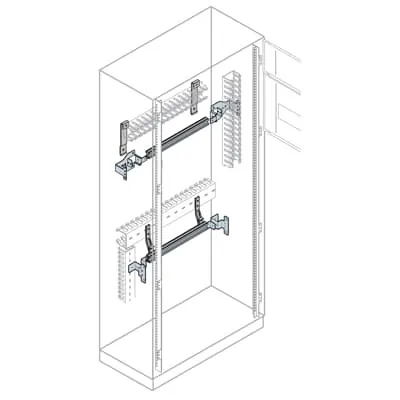

EH0036 ABB: DIN rail and fixing supports (36 DIN mod.) W=800mm
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
2. DIN rail Kit with front wiring duct
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
649.5 mm
Product Net Height
99 mm
Product Net Depth / Length
96 mm
Product Net Weight
0.8880 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.968 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: 12 modular apparatus capacity enables scalable control panel configurations. Benefit: supports growing I/O and drive requirements without rework, reducing engineering time and change orders. Application: ideal for evolving machine automation and process control in manufacturing environments. Feature: Kit or pre-assembled mounting offers flexible deployment. Benefit: speeds installation and minimizes field wiring errors, boosting uptime. Application: modular installations across AM2 cabinet families and IS2 enclosures for automation. Feature: DIN rail kit with front wiring duct improves wiring discipline. Benefit: simplifies cable management, lowers commissioning time, and enhances maintainability. Application: control panels with dense I/O and fast-paced line changes. Feature: Pickled steel sheet with orange peel finish (RAL 7035) and opaque door surface. Benefit: robust environmental resistance and easy cleaning in harsh plants. Application: production floors, packaging lines, and robotic interfaces. Feature: RoHS, REACH, and CE declarations ensure global compliance. Benefit: reduces regulatory risk and supports cross-border deployments. Application: aerospace of component purchase and supplier audits; global OEM programs. Feature: Dimensions and weight (649.5 mm width, 99 mm height, 96 mm depth; 0.888 kg). Benefit: predictable footprint for rack compatibility and shipping costs. Application: standardizing enclosures within multi-line automation projects.
Get a Quick Quote for a ABB EH0036
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH0036?
Enquire Now
FAQs
EH0036 is designed to fit AM2 cabinets and IS2 enclosures for automation. It supports a DIN rail kit with front wiring duct and offers either a pre-assembled option or a kit-mounted configuration, enabling quick field integration while maintaining a consistent enclosure footprint across standard automation architectures.
EH0036 provides two mounting options: a kit-based configuration that allows on-site assembly and a pre-assembled option for faster deployment. Both approaches support the 12 modular apparatus architecture and DIN rail integration, minimizing wiring complexity and reducing installation time in busy production environments.
EH0036 carries CE conformity, RoHS compliance and REACH declarations, supporting global regulatory requirements. It is also associated with ETIM classification EC000747 for precise product categorization, aiding procurement and standardization across automation projects.
The DIN rail kit with front wiring duct is designed to streamline wiring and cable management, reducing on-site wiring time and potential interference. Plan for clear front access to cables, ensure alignment with the modular slots, and verify compatibility with AM2 cabinet layouts to maximize installation efficiency.
EH0036 delivers a predictable footprint, modular scalability, and options for rapid deployment, which lowers total project lead times and field labor costs. Its robust RoHS/REACH/CE compliance reduces regulatory risk, while the optional pre-assembled or kit mounting minimizes maintenance downtime and simplifies future expansions.
