ABB EH1925 Control and Automation Board - 19" Rack Structure
Part Number: EH1925
Quick Summary
ABB EH1925 is a control and automation board for IS2 enclosure systems used in industrial automation. Manufacturers often struggle with incompatible rack kits and lengthy field assembly, leading to project delays. With RoHS, REACH, and a CE declaration of conformity for IS2 enclosures, this kit supports compliant, drop-in installation. Pre-assembled and dimensionally aligned for 19 inch racks, it reduces installation time while maintaining strong mechanical integrity. Designed for standardization and efficient procurement, the EH1925 delivers reliable performance across European facilities and scalable configurations. By pairing the mounting set with IS2 enclosure ecosystems, it enables faster commissioning, easier maintenance, and predictable spare part compatibility. This makes it a practical choice for engineering teams seeking consistent rack compatibility and reduced total cost of ownership.
Product Information
Extended Description

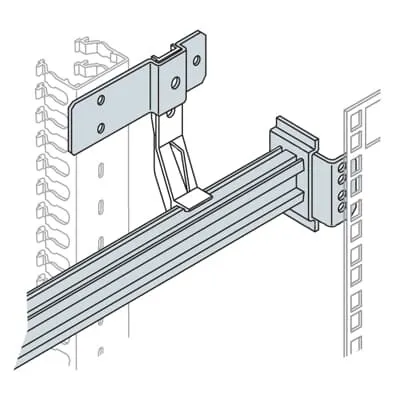

EH1925 ABB: Kit DIN rail for Rack 19''frame 25 MOD.
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Surface Finishing
Orange Peel, RAL 7035
Material
Galvanized Steel sheet
Options Provided
8. 19" rack frame - Equipment
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
110 mm
Product Net Height
110 mm
Product Net Depth / Length
460 mm
Product Net Weight
0.780 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.8 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature: 482.6 mm (19 inch) mounting set aligns with standard 19" rack rails. Business Impact: accelerates rack integration and reduces field adaptation errors, improving first-pass install success rates in factory environments. Application: ideal for ABB IS2 Enclosures for Automation and Control and Automation Board class equipment. Feature: Kit is pre-assembled for rapid deployment. Business Impact: minimizes on-site assembly time, lowers labor costs, and shortens project timelines. Application: suitable for high-mix, low-volume production lines where time-to-commission is critical. Feature: Galvanized steel with orange peel finish (RAL 7035). Business Impact: provides corrosion resistance and a maintenance-friendly surface for long-term reliability in harsh industrial settings. Application: suitable for outdoor or semi-enclosed installations in manufacturing plants. Feature: Product net dimensions and reference options (110 mm W x 110 mm H x 460 mm D; depths 300–1000 mm; heights 1400–2200 mm; widths 600–800 mm). Business Impact: supports multiple enclosure footprints and scalable configurations, reducing the need for new cabinets. Application: enables standardized configurations across varied line layouts. Feature: RoHS and REACH declarations, CE conformity, and WEEE status. Business Impact: ensures regulatory compliance and sustainable end-of-life planning. Application: essential for European procurement and fleet-wide compliance programs. Feature: 8. 19" rack frame - Equipment option and installation manual reference. Business Impact: simplifies ordering, reduces configuration errors, and provides clear setup guidance. Application: accelerates procurement cycles and minimizes installation risk in automated systems.
Get a Quick Quote for a ABB EH1925
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH1925?
Enquire Now
FAQs
EH1925 is designed as a pre-assembled 19" rack mounting kit specifically for ABB IS2 Enclosures for Automation. It features a 482.6 mm mounting set and is intended to fit standard 19" rack rails, ensuring straightforward integration with IS2 enclosure ecosystems and the Control and Automation Board class configurations.
The kit uses galvanized steel sheet with an orange peel finish (RAL 7035) for durability and corrosion resistance. This combination supports long-term reliability in industrial environments while facilitating maintenance and touch-ups if required.
EH1925 carries a CE Declaration of Conformity for IS2 enclosures, RoHS information with a 20250108 date, and a REACH declaration. WEEE classification is Product Not in WEEE Scope, simplifying regulatory considerations for European deployments.
Because the kit is pre-assembled and intended for 19" rack rails, installation is typically straightforward: mount the component on the rack frame, attach to the IS2 enclosure, and refer to the installation manual 1STM604121R0006 for step-by-step guidance, reducing field wiring and assembly time.
EH1925 provides standardized mounting, regulatory compliance, and faster commissioning, which translates to lower labor costs, reduced project risk, and predictable spare-part compatibility across European facilities.
