ABB EH1992 Control and Automation Board - CE Certified
Part Number: EH1992
Quick Summary
ABB EH1992 Control and Automation Board enables robust control panel installations for IS2 enclosures in automation. But engineers often struggle with mismatched racks and long commissioning times; this kit streamlines installation and reduces errors. It carries CE conformity, RoHS-compliant materials, and REACH declarations to support regulatory compliance across EU supply chains. Designed for IS2 Enclosures for Automation and compatible with 19-inch mounting sets, it delivers faster project delivery and lower total cost of ownership. By standardizing the mounting, panel fabrication time drops dramatically, enabling tighter project schedules. With ETIM and eClass classifications aligned, procurement and lifecycle support become more predictable.
Product Information
Extended Description

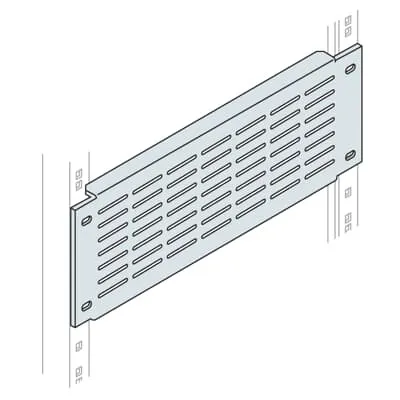

EH1992 ABB: Ventilated panel 2HE
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Surface Finishing
Orange Peel, RAL 7035
Material
Galvanized Steel sheet
Options Provided
6. Blind and aerated panel in steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
486 mm
Product Net Height
89 mm
Product Net Depth / Length
12.7 mm
Product Net Weight
0.780 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.78 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature: 482.6 mm (19 inch) mounting set. Business Impact: Standardized, aligned rack integration reduces misfit risks and rework while speeding assembly. Application: IS2 Enclosures for Automation installations in control rooms and on shop floors. Feature: Kit | Pre assembled mounting type. Business Impact: Decreases on-site labor and commissioning time, lowering installation costs and error potential. Application: Automation panels across multiple project scopes. Feature: 2HE ventilated panel with galvanized steel and orange peel finish (RAL 7035). Business Impact: Improves thermal management and corrosion resistance, extending panel life and reliability. Application: High-availability control panels in manufacturing lines. Feature: Material compliance RoHS and REACH with CE Declaration. Business Impact: Simplifies regulatory compliance and supplier audits, reducing risk in EU supply chains. Application: Global deployments requiring strict material standards. Feature: Reference depths/heights/widths (300–1000 mm depth, 1400–2200 mm height, 600/800 mm width). Business Impact: Scales across a range of enclosure footprints, enabling flexible project design. Application: Customizable IS2 Enclosures for Automation projects. Feature: Surface finishing Orange Peel, RAL 7035 and options provided for blind and aerated panels. Business Impact: Aesthetics combined with airflow optimization supports safer, cooler operation. Application: Front-access control panels in automation environments.
Get a Quick Quote for a ABB EH1992
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH1992?
Enquire Now
FAQs
EH1992 uses a standard 482.6 mm (19 inch) mounting set designed for IS2 Enclosures for Automation. The pre-assembled kit simplifies rack insertion and alignment, reducing misfits and the need for field adjustments. Ensure enclosure rails are prepared, then slide in the kit and secure with standard fasteners to achieve a precise, reusable mounting base.
Key specs include a 2HE ventilated panel, galvanized steel with an orange peel finish (RAL 7035), and a compact 0.780 kg weight. Dimensions support reference depths from 300 to 1000 mm, and heights from 1400 to 2200 mm with 600 or 800 mm widths. These details influence heat management, cabinet fit, and long-term durability in automation environments.
Yes. EH1992 is explicitly designed for IS2 Enclosures for Automation and supports 19-inch rack structures. Its pre-assembled kit and compatible mounting set streamline integration with existing ABB and third-party equipment, delivering a scalable solution for production lines, panels, and control cabinets.
EH1992 carries CE conformity with a Declaration of Conformity IS2, along with RoHS and REACH declarations. Material data indicates RoHS-compliant content, and REACH information confirms no substances above 0.1% mass percentage. WEEE classification notes the product is not in scope, aiding responsible disposal planning.
The pre-assembled design reduces on-site labor and commissioning time, lowering project costs and speeding time-to-commission. Durable galvanized steel and a durable finish minimize maintenance needs, while regulatory compliance reduces risk and audit overhead. Compatibility with standard 19-inch racks supports reuse across multiple projects, further improving lifecycle ROI.
