ABB EH2180 Control Board - IS2 Enclosures 800x1400mm
Part Number: EH2180
Quick Summary
ABB EH2180 Control Board provides modular enclosures for automation control systems in industrial facilities. This design addresses the challenge of bulky, multi-compartment layouts by offering a compact, pre-assembled compartment cubicle solution that speeds installation. It carries CE conformity, RoHS information, and REACH declarations to support regulatory compliance, helping you meet industrial standards with less risk. For system integrators, the IS2 enclosure compatibility and robust orange peel finish translate into quicker commissioning, lower maintenance overhead, and scalable depth/height options that align with growing automation needs. In short, it delivers reliable protection for control circuits while optimizing procurement and lifecycle value.
Product Information
Extended Description

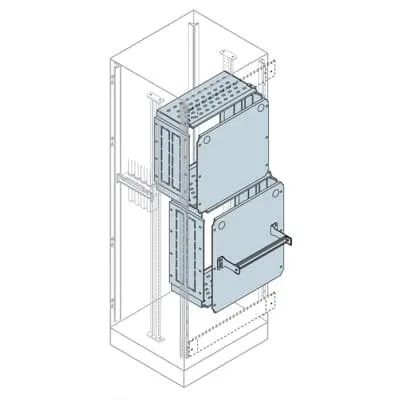

EH2180 ABB: Compartment cubicle 200x800mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
11. Configuration with compartments
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
Compartment cubicle
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
698 mm
Product Net Height
153 mm
Product Net Depth / Length
229.4 mm
Product Net Weight
13.810 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
14.100 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
The EH2180 uses a pickled steel sheet with orange peel surface finishing (RAL 7035), delivering durable protection in demanding environments and reducing corrosion-related maintenance costs over the cabinet’s life. This translates to improved reliability for critical automation systems and less downtime during harsh manufacturing conditions. The enclosure supports a reference width of 800 mm and a family of reference heights (1400–2200 mm) with a reference depth range (300–1000 mm), enabling flexible layout planning for control panels and wiring layouts. Mounting type versatility (Kit or Pre assembled) and a single door design simplify installation, accelerate changes, and minimize field labor, while compartment cubicles help keep feeds, controllers, and I/O modules neatly organized. Compliance features aligned with RoHS, REACH, and CE declarations reduce regulatory risk and streamline audits for regulated industries. ETIM EC000747 classification ensures seamless compatibility with distributors and maintenance teams, reinforcing a robust supply chain for IS2 enclosures. Overall, you gain faster project delivery, standardized parts, and clearer maintenance paths for automated systems.
Get a Quick Quote for a ABB EH2180
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH2180?
Enquire Now
FAQs
Yes. EH2180 is designed for IS2 enclosure systems and offers mounting versatility via Kit or Pre assembled configurations. It supports a single-door design and compartment cubicles, aligning with standard IS2 accessories. This simplifies integration with existing frames and reduces field wiring complexity, helping you achieve faster cabinet assembly and consistent installation quality.
Key specs include a net width of 698 mm, net height of 153 mm, and net depth of 229.4 mm, with a reference width of 800 mm and reference heights from 1400 to 2200 mm. It weighs 13.810 kg and uses pickled steel with an orange peel finish (RAL 7035). It features a single door, compartment cubicle, and mounting options as Kit or Pre assembled, along with RoHS and REACH declarations.
Absolutely. EH2180 is tailored for IS2 enclosure applications and automation boards, offering compartmentalized layouts to organize wiring and components. Its robust finish and standard dimensions support scalable panel configurations, rapid upgrades, and reliable protection for controllers, relays, and I/O. The design supports efficient maintenance and expansion in demanding manufacturing environments.
EH2180 provides a CE Declaration of Conformity, RoHS information (with date 20250108), and a REACH declaration. It is categorized within WEEE as Product Not in WEEE Scope and has ETIM EC000747 classification for door/operating panel compatibility. These certifications assist with regulatory audits and supplier qualification in industrial facilities.
The modular, compartment-based approach reduces on-site assembly time and inventory complexity, leading to faster project completion and lower labor costs. The durable steel enclosure and standardized components minimize downtime due to failures, while CE/ RoHS/REACH compliance reduces regulatory risk. Long-term maintenance benefits include predictable replacement parts, easier labeling, and scalable configurations for future automation upgrades.
