ABB EH2200 Control and Automation Board - CE Conformity
Part Number: EH2200
Quick Summary
ABB EH2200 is a control and automation board designed for IS2 enclosure systems in industrial automation. Engineers often battle mismatched panel dimensions and slow installation when upgrading modular control cabinets. It ships with CE conformity, RoHS/REACH compliance, and is built to IS2 mounting standards for robust, durable operation. This modular kit simplifies installation with pre-assembled uprights and modular apparatus options, reducing site downtime. By ensuring precise fitment and standardization across stock panels, it accelerates project timelines and lowers long-term maintenance costs. Engineers appreciate documented compatibility with IS2 enclosures and the IS2 Enclosures Technical Catalogue 2024 as a reference. Beyond compliance, the orange peel finish in RAL 7035 helps corrosion resistance in demanding plant environments.
Product Information
Extended Description

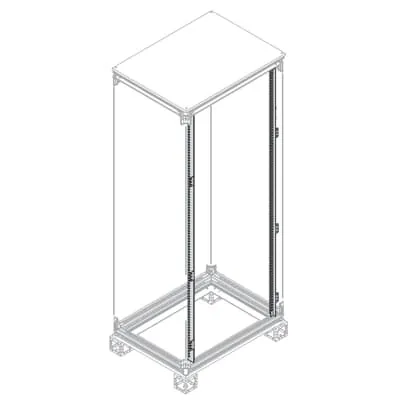

EH2200 ABB: N°2 uprights for modular panels H=2200mm
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Material
Galvanized Steel sheet
Options Provided
1. Uprights for modular apparatus panels
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
55.3 mm
Product Net Height
2096 mm
Product Net Depth / Length
48.8 mm
Product Net Weight
8.030 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
8.190 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000386 - Mounting rail/-profile
ETIM 9
EC000386 - Mounting rail/-profile
eClass
V11.1 : 27400501
Object Classification Code
U
Standards
See code for structure
Feature: IS2-compatible uprights and modular apparatus panels. Business Impact: Reduces misalignment risks and speeds assembly, cutting commissioning time on automated lines. Application: Ideal for IS2 enclosures in factory automation projects, supporting quick upgrades without custom fabrication. Feature: Kit | Pre assembled mounting type. Business Impact: Decreases on-site labor and alignment errors, enabling standardized installations across multiple sites. Application: Suitable for multi-site rollout of control cabinets in manufacturing facilities. Feature: Material and finish — galvanized steel with Orange Peel, RAL 7035. Business Impact: Delivers durable corrosion resistance in harsh environments, extending cabinet life and reducing maintenance costs. Application: Recommended for warehouses, fabrication plants, and outdoor-adjacent automation zones. Feature: Defined dimensions and weight — 2096 mm height, 55.3 mm width, 48.8 mm depth; 8.030 kg. Business Impact: Small footprint with predictable handling enables better space utilization and easier logistics. Application: Fits within varied IS2 frame configurations and simplifies inventory planning. Feature: Regulatory compliance — RoHS, REACH, WEEE and CE declarations. Business Impact: Eases procurement audits and ensures regulatory alignment across regions. Application: Critical for customer compliance programs and global sourcing strategies. Feature: Reference depth/length and width options — 300–1000 mm depths; 400–1600 mm widths. Business Impact: Flexible sizing supports customization without bespoke tooling, lowering total cost of ownership. Application: Enables tailored enclosure assemblies across diverse control panels in process industries.
Get a Quick Quote for a ABB EH2200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH2200?
Enquire Now
FAQs
The EH2200 arrives as a pre-assembled kit with uprights designed for IS2 enclosures. Start by confirming the enclosure width (400–1600 mm), then mount the uprights per the IS2 mounting guidelines. The kit simplifies alignment and reduces field fabrication, enabling a faster, repeatable installation across multiple panels.
Key dimensions include a net height of 2096 mm, net width of 55.3 mm, and net depth of 48.8 mm, with a product net weight of 8.030 kg. Reference depth options range from 300 to 1000 mm, and reference width options include 400 to 1600 mm, enabling precise space and inventory planning.
Yes. The EH2200 carries CE conformity, RoHS information dated 20250108, and REACH declarations. It is also categorized under WEEE as not in scope for disposal, making it suitable for global procurement with regulatory assurance.
The 12 modular apparatus option and kit/ pre-assembled mounting streamline panel assembly, reduce on-site customization, and support rapid changes in control configurations. This reduces downtime, lowers labor costs, and improves repeatability across production lines.
Industries with automated manufacturing lines, process control cabinets, and modular control panels benefit most. The EH2200 supports IS2 enclosures for automation, is compatible with standard mounting rails, and aligns with ETIM and eClass classifications, ensuring robust installation in chemical, food & beverage, and general manufacturing environments.
