ABB EH2272K Control and Automation Board - CE Conformity
Part Number: EH2272K
Quick Summary
ABB EH2272K is a modular control and automation board panel designed for AM2 cabinets and IS2 enclosures. Engineers often grapple with combining multiple modules into a compact, reliable kit that ships ready to install. This panel ships with CE Declaration of Conformity, RoHS, and REACH compliance, while ETIM classification helps procurement systems index it accurately. In practice, it pairs with AM2 cabinets and IS2 enclosures as a pre-assembled mounting kit, delivering fast deployment, consistent component placement, and predictable long-term maintenance for automation projects.
Product Information
Extended Description

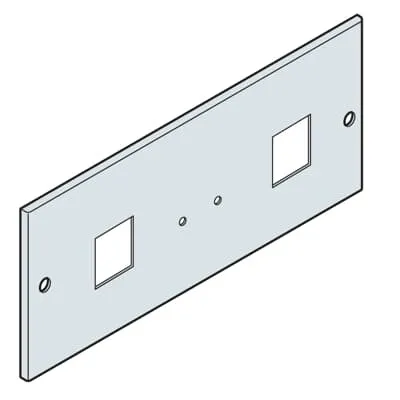

EH2272K ABB: Panel for n°2 instruments 72x72mm 200x600mm (HxW)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
9. Panel for square measuring instruments
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
489.5 mm
Product Net Height
199 mm
Product Net Depth / Length
12.7 mm
Product Net Weight
1.140 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.170 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The kit and pre-assembled mounting Type reduces现场 assembly time and minimizes installation errors, accelerating project timelines and improving first-pass commissioning in automated panels. Application: Ideal for IS2 enclosure setups in manufacturing lines where quick changeover is critical. Feature → Business Impact → Application: Suitability for AM2 Cabinets and IS2 Enclosures for Automation ensures compatibility with standard ABB enclosures, reducing engineering searches and stock complexity. Application: Automates control panels in process industries with strict enclosure standards. Feature → Business Impact → Application: Panel designed for two instruments (72x72 mm and 200x600 mm) optimizes space, preserving cabinet real estate while maintaining accessibility. Application: DCS and PLC panel blocks in control rooms or现场 cabinets. Feature → Business Impact → Application: Orange Peel, RAL 7035 finish on pickled steel provides durable surface protection and a consistent appearance across the plant, supporting maintenance cycles and visual audits. Application: Harsh factory environments where cosmetic and corrosion resistance matter. Feature → Business Impact → Application: RoHS and REACH compliance with a CE Declaration of Conformity ensures regulatory readiness and easier supplier audits, reducing risk across deployments. Application: Global projects requiring regulatory traceability and sustainable sourcing. Feature → Business Impact → Application: Defined reference dimensions and weights (489.5 mm width, 199 mm height, 12.7 mm depth, 1.140 kg) simplify mechanical integration, cabinet planning, and install estimation. Application: New line builds and retrofit projects where prepared footprint accelerates procurement and installation.
Get a Quick Quote for a ABB EH2272K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH2272K?
Enquire Now
FAQs
EH2272K is specified for AM2 cabinets and IS2 enclosures, and ships as a pre-assembled mounting kit with a 12-modular apparatus format. This ensures plug‑and‑play integration in standard ABB automation backbones, reducing field adaptation time and simplifying procurement.
The panel has a net width of 489.5 mm, a net height of 199 mm, and a net depth of 12.7 mm, with a net weight of 1.140 kg. Reference widths/heights span 600 mm and 1400–2200 mm, aiding mechanical integration and rack planning.
The panel is designed for n°2 instruments sized 72x72 mm and 200x600 mm (HxW), enabling compact panel layouts while preserving accessibility and serviceability for routine maintenance.
Yes. The product includes a CE Declaration of Conformity, RoHS information with a 20250108 RoHS date, and a REACH declaration with a 20250108 date, helping you meet regulatory and sustainability requirements.
The kit’s pre-assembled mounting type reduces on-site labor, accelerates commissioning, and improves predictability in maintenance planning. Its compatibility with ISO‑standard enclosures and documented compliance supports faster procurement and lower lifecycle risk.
