ABB EH2297K Control and Automation Board - CE Certified
Part Number: EH2297K
Quick Summary
ABB EH2297K is a control and automation board designed for AM2 cabinets and IS2 enclosures. The module helps eliminate integration guesswork by providing a ready-to-install kit that reduces field assembly risks. Engineers often face mismatched mounting patterns, variable instrument sizes, and lengthy commissioning when assembling control panels; this solution centralizes the hardware in a pre-assembled panel. It carries CE conformity, RoHS compliance, and REACH declarations to align with international safety and environmental standards. By offering a 489.5 mm width, 199 mm height, and a 12.7 mm depth in a ready-to-mount kit, ABB streamlines procurement, reduces labor costs, and supports faster project delivery with consistent quality.
Product Information
Extended Description

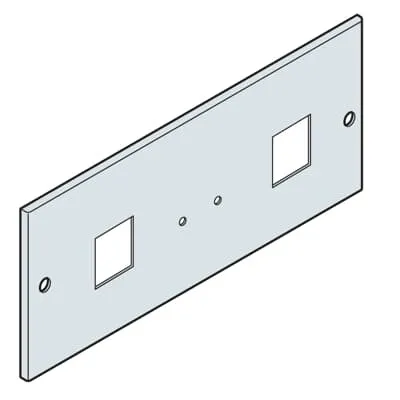

EH2297K ABB: Panel for n°2 instruments 96x96mm 200x600mm (HxW)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
9. Panel for square measuring instruments
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
489.5 mm
Product Net Height
199 mm
Product Net Depth / Length
12.7 mm
Product Net Weight
1.140 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.170 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Suitable For AM2 Cabinets | IS2 Enclosures for Automation. Business Impact: guarantees compatibility with standard ABB frames, minimizing the need for adapters and rework. Application: ideal for automation panel deployments across multiple sites with consistent interfaces. Feature: Mounting Type Kit | Pre assembled. Business Impact: lowers field labor time and risk by enabling pre-assembly, reducing on-site complexity. Application: efficient rollout for large-scale automation projects and OEM builds. Feature: Material and Finish. Business Impact: pickled steel sheet with Orange Peel, RAL 7035 surface delivers durable resistance to workshop environments while maintaining a professional appearance. Application: suitable for harsh plant floors and cabinet doors subjected to frequent handling. Feature: Dimensions and References. Business Impact: clear width 489.5 mm, height 199 mm, depth 12.7 mm; selectable reference depths/heights (300–1000 mm; 1400–2200 mm). Application: ensures a perfect fit within standard IS2 frames and modular assemblies. Feature: Compliance and Classification. Business Impact: CE Declaration, RoHS, and REACH declarations provide regulatory confidence and smoother procurement. Application: supports global deployments and audits. Feature: Weight and Packaging. Business Impact: lightweight 1.140 kg net; 1.170 kg gross packaging for easy handling and shipping. Application: helps minimize freight costs in warehouse-to-site transfers. Feature: Documentation and Standards. Business Impact: ETIM EC000747, eClass 27182204 mapping improves supplier selection and e-procurement workflows. Application: aligns with digital catalogs and sourcing portals.
Get a Quick Quote for a ABB EH2297K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH2297K?
Enquire Now
FAQs
The EH2297K is specifically designed for AM2 cabinets and IS2 enclosures, ensuring a reliable fit with standard ABB frames. Its mounting kit can be pre assembled, reducing on-site adaptation and hardware sourcing that often delays panel builds. This compatibility supports faster deployments across multiple sites without sacrificing interface consistency.
Net width is 489.5 mm, net height 199 mm, and net depth 12.7 mm. Reference dimensions include depths/heights ranging from 300–1000 mm and 1400–2200 mm, with a reference width of 600 mm. Net weight is 1.140 kg, with a package gross weight of 1.170 kg, aiding shipping and handling planning for BOMs and warehousing.
Yes. The EH2297K carries a CE Declaration of Conformity and RoHS information with RoHS date 20250108, plus a REACH declaration dated 20250108. This combination supports regulatory compliance in many regions, simplifying approval processes during audits and customer validation.
The pre-assembled modular kit reduces on-site labor and assembly time, enabling faster commissioning. Operators benefit from standardized mounting patterns and instrument accommodations, minimizing field adjustments. For large rollouts, this approach lowers total cost of ownership by shortening project timelines and improving consistency across installations.
EH2297K is aligned with ETIM 8 EC000747 (Door/operating panel) and eClass 27182204, improving supplier classification and e-procurement accuracy. It's documented in the IS2 Enclosures Technical Catalogue 2024, and WEEE guidance indicates it is not in the WEEE scope, simplifying end-of-life considerations in some markets.
