ABB EH2472K Control and Automation Board - CE Conformity
Part Number: EH2472K
Quick Summary
ABB EH2472K is a control and automation panel for AM2 cabinets and IS2 enclosures. It addresses integration bottlenecks by delivering a pre-assembled, modular mounting kit that reduces field assembly time. The product carries CE conformity with RoHS and REACH declarations, plus ETIM classifications, supporting regulatory compliance in industrial environments. This panel is designed to streamline procurement and installation, offering a durable finish and consistent performance. By aligning with AM2 and IS2 standards, it enables scalable automation and faster commissioning, delivering clear business value through reduced downtime and predictable maintenance costs.
Product Information
Extended Description

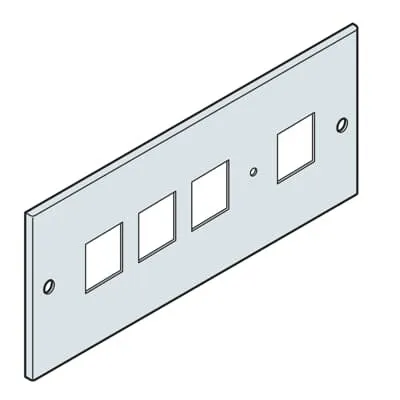

EH2472K ABB: Panel for n°4 instruments 72x72mm 200x600mm (HxW)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
9. Panel for square measuring instruments
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
489.5 mm
Product Net Height
199 mm
Product Net Depth / Length
12.7 mm
Product Net Weight
1.140 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.170 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Modular apparatus and pre-assembled mounting kit. Business Impact: Accelerates installation, minimizes field wiring errors, and lowers labor costs. Application: Ideal for AM2 cabinets and IS2 enclosures in automated lines. Feature: Durable orange peel finish in RAL 7035 on pickled steel. Business Impact: Enhanced corrosion resistance and easier cleaning, reducing repainting needs and downtime. Application: Harsh plant environments where visibility and longevity matter. Feature: Standardized dimensions with reference depth and height options (300–1000 mm depth, 1400–2200 mm height) and net width 489.5 mm. Business Impact: Design flexibility and faster layout planning, enabling repeatable configurations across multiple lines. Application: Modular automation setups with scalable cabinet footprints. Feature: Compliance and declarations (CE, RoHS, REACH) plus ETIM classification. Business Impact: Simplified regulatory audits and reliable supplier documentation, lowering procurement risk. Application: Certification-driven projects in regulated industries. Feature: Mounting Type kit or pre-assembled option. Business Impact: Faster installation and easier upgrade paths, reducing commissioning time by days. Application: Quick deployment in IS2 and AM2 environments. Feature: Lightweight net weight 1.140 kg and package weight 1.170 kg. Business Impact: Easier handling and logistics, reducing shipping costs and on-site strain during installation. Application: Field deployment across multiple sites with minimal transport needs.
Get a Quick Quote for a ABB EH2472K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH2472K?
Enquire Now
FAQs
The EH2472K provides both a kit and pre-assembled mounting option, enabling fast on-site deployment or complete pre-assembly at the factory. This supports reduced installation time, lower field wiring risk, and simplified future upgrades within AM2 cabinets or IS2 enclosures.
EH2472K ships with a Declaration of Conformity CE, RoHS information, and REACH declarations, plus ETIM classifications. This alignment streamlines audits, procurement traceability, and ensures the panel meets typical European regulatory requirements for electrical equipment in automation environments.
Yes. The panel is specified as suitable for IS2 enclosures for automation and AM2 cabinets, with modular instrument mounting for 72x72 mm instruments. This compatibility supports scalable automation layouts and consistent instrument integration across enclosure types.
Key dimensions include a 600 mm width, 1400 mm height, and 300 mm depth for the overall panel, with a net width of 489.5 mm, net height of 199 mm, and net depth of 12.7 mm. Net weight is 1.140 kg and package weight is 1.170 kg, aiding planning for transport and installation.
Refer to the IS2 Enclosures Technical Catalogue 2024 for data sheets and installation guidance. The 1STM604121R0006 manual number is the installation reference, and the catalogue provides detailed compatibility, instrument mounting guidelines, and dimensional data.
