ABB EH3060 Control and Automation Board - CE RoHS REACH Ready
Part Number: EH3060
Quick Summary
ABB EH3060 is a control and automation board enclosure designed for IS2 automation applications. Engineers often face long assembly times and misalignment when building panels from scratch, which delays projects and increases costs. This model carries CE, RoHS, and REACH declarations, with ETIM classifications that simplify procurement and compliance checks. The robust pickled steel shell features an orange peel finish in RAL 7035, and it supports IS2 enclosures for automation. By combining a pre-assembled kit option with compartmentalized design, EH3060 enables faster deployment, easier maintenance, and reliable performance across industrial cabinet builds and machine systems.
Product Information
Extended Description

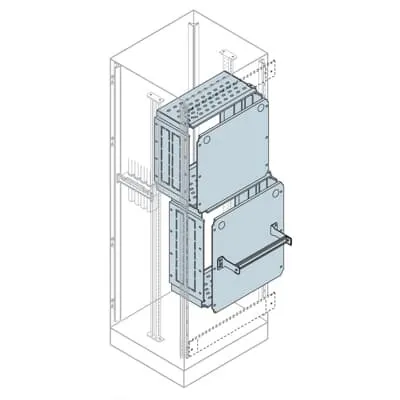

EH3060 ABB: Compartment cubicle 300x600mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
11. Configuration with compartments
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
Compartment cubicle
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
498 mm
Product Net Height
253 mm
Product Net Depth / Length
229.4 mm
Product Net Weight
7.999 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
8 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
UNSPSC
39121321
eClass
V11.1 : 27182204
IDEA Granular Category Code (IGCC)
4465 >> Enclosure General Accessories
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: Pre-assembled configuration reduces on-site assembly time and field errors, accelerating panel integration for IS2 Enclosures for Automation in automotive, process, and packaging lines. Feature → Business Impact → Application: Compartment cubicle enables organized wiring and modular expansion, improving fault diagnosis and serviceability for Control and Automation Board installations. Feature → Business Impact → Application: Kit mounting with a single door and precise dimensions (W 498 mm, H 253 mm, D 229.4 mm) ensures predictable fit in standard 600 mm reference widths and 1400–2200 mm reference heights, minimizing rework during upgrades. Feature → Business Impact → Application: Orange Peel surface finish in RAL 7035 provides durable corrosion resistance in harsh environments, reducing repaint cycles and downtime. Feature → Business Impact → Application: RoHS and REACH compliance plus CE declaration reduces regulatory risk and simplifies supplier audits for OEMs and system integrators. Feature → Business Impact → Application: Reference depth options from 300 to 1000 mm and mounting versatility (Kit | Pre assembled) support a wide range of control panels, enabling scalable automation architectures without custom fabrication.
Get a Quick Quote for a ABB EH3060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH3060?
Enquire Now
FAQs
Yes, EH3060 is designed for IS2 Enclosures for Automation and supports both a pre-assembled kit and a modular mounting approach. It features a kit | pre assembled mounting type, a single door, and compartment cubicle options to streamline panel assembly while ensuring a secure, vibration-resistant fit in IS2 configurations.
EH3060 provides a product net width of 498 mm, net height of 253 mm, and net depth of 229.4 mm, with a product net weight of 7.999 kg. Reference dimensions include depths of 300–1000 mm and heights of 1400–2200 mm, enabling precise space planning and compatible mounting in standard enclosures.
EH3060 is ideal for IS2 Enclosures for Automation and Control and Automation Board applications in automotive, machinery, and process industries. Its compartment cubicle configuration supports organized wiring, while the pre-assembled option reduces deployment time for panel builders and integrators.
EH3060 ships with a Declaration of Conformity CE, RoHS information with a RoHS date of 20250108, and a REACH declaration with REACH date 20250108. It also includes ETIM classifications EC000747 for both ETIM 8 and ETIM 9, aligning with industry standards and simplifying approvals.
By offering a pre-assembled kit and compartment cubicle options, EH3060 minimizes field assembly, reducing installation time and labor costs. The durable pickled steel with orange peel finish (RAL 7035) resists environmental wear, lowering repaint and maintenance needs while ensuring long-term reliability in busy production environments.
