ABB EH3080 Control and Automation Board - CE Declaration
Part Number: EH3080
Quick Summary
The ABB EH3080 is a control and automation board for IS2 enclosures used in automation systems. Engineers often struggle with fragmented parts and long lead times when integrating modular panels. This kit meets CE declarations, RoHS and REACH requirements, aligning with IEC/EN standards for safer, compliant installations. Beyond compliance, the design supports IS2 automation environments with a compact footprint and ready-to-install compartments. For procurement teams and engineers, the EH3080 delivers reliable performance, predictable lead times, and scalable options. Use cases range from machine control panels to process automation cabinets.
Product Information
Extended Description

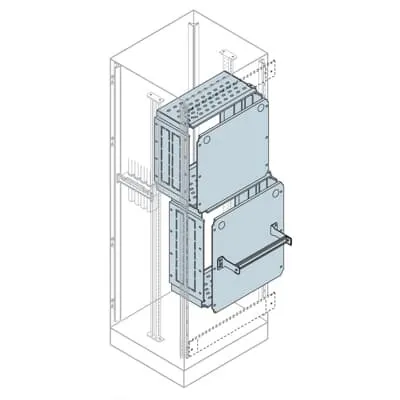

EH3080 ABB: Compartment cubicle 300x800mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
11. Configuration with compartments
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
Compartment cubicle
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
698 mm
Product Net Height
253 mm
Product Net Depth / Length
229.4 mm
Product Net Weight
19.260 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
19.650 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
The compartment cubicle configuration of the EH3080 enables organized separation of controls and power components, boosting reliability and ease of maintenance; this directly reduces downtime and simplifies future upgrades in IS2 automation environments. The mounting option offers either a kit or pre-assembled setup, delivering faster installation while minimizing on-site fabrication and wiring errors in compact control panels. Built from pickled steel with an orange peel RAL 7035 finish and a single door, it withstands industrial conditions while presenting a professional, corrosion-resistant surface for long-term service life. Dimensions are tuned for tight spaces: 698 mm width, 253 mm height, and 229.4 mm depth, with reference depths from 300 to 1000 mm and a standard 800 mm width to suit diverse control layouts. The material and finish support easy cleaning and surface protection in harsh environments, aligning with RoHS and REACH expectations and the IS2 Enclosures Technical Catalogue 2024. The design also integrates with 5B5B30B370 product specifications and ETIM classifications, ensuring compatibility with common industry catalogs and procurement systems. Practically, this means reduced ordering complexity, streamlined installation, and predictable integration with automation panels and control architectures across manufacturing and process industries.
Get a Quick Quote for a ABB EH3080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH3080?
Enquire Now
FAQs
Yes. EH3080 is designed for IS2 enclosures and ships as a compartment cubicle that can be mounted as a kit or in a pre-assembled configuration. It fits a standard 698 mm wide footprint with a net height of 253 mm and a net depth of 229.4 mm, aligning with IS2 reference widths and heights. A single door and durable pickled steel construction simplify replacement and upgrades while reducing on-site assembly time.
Key dimensions include a net width of 698 mm, net height of 253 mm, and net depth of 229.4 mm, with an approximate net weight of 19.260 kg. These specifications guide enclosure sizing, ensuring the compartment cubicle fits IS2 frames and allows adequate space for cabling, connectors, and modular compartments. The 1-piece packaging and 800 mm reference width improve compatibility with standard panel layouts.
EH3080 is ideal for automation control panels, machine control cabinets, and process automation enclosures in manufacturing and industrial environments. The compartment cubicle arrangement supports safe separation of control circuits from power electronics, improving thermal management and serviceability. Its pre-assembled option accelerates project timelines in system integrator projects, plant retrofits, and new line deployments.
EH3080 carries a CE declaration of conformity, with RoHS information and REACH declarations indicating restricted substances compliance. This supports regulatory alignment with European standards and reduces risk in audits. WEEE categorization places the product appropriately in lifecycle management, while ETIM classifications (EC000747) help with consistent cataloging and procurement workflows.
Documentation includes IS2 Enclosures Technical Catalogue 2024 and the installation manual reference 1STM604121R0006, enabling straightforward installation and maintenance. The pre-assembled option minimizes on-site wiring and assembly time, reducing labor costs. Long-term benefits include easier upgrades, predictable replacement cycles, and adherence to RoHS/REACH, contributing to lower total cost of ownership and improved uptime.
