ABB EH3272K Control & Automation Board - IS2 Enclosures
Part Number: EH3272K
Quick Summary
ABB EH3272K is a control and automation board designed for AM2 cabinets and IS2 enclosures. Engineers often struggle with modular mounting, device compatibility, and regulatory compliance in panel builds. It carries CE conformity with Declaration of Conformity IS2, RoHS compliance, and REACH declarations, plus ETIM classification to simplify sourcing. The enclosure is designed for reliability and scalable expansion, making panel upgrades faster and compliant. For manufacturers and integrators, EH3272K reduces downtime, streamlines installation, and provides clear documentation for audit trails. Its modular 12-piece apparatus and pre-assembled options support rapid deployment in growing automation lines.
Product Information
Extended Description

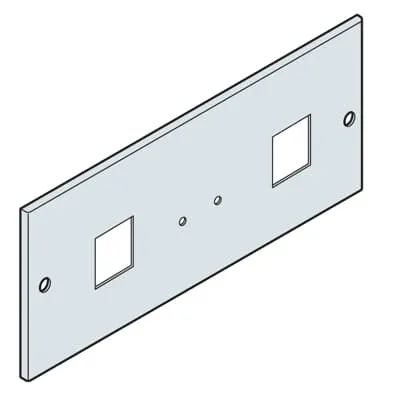

EH3272K ABB: Panel for n°2 instruments 72x72mm 200x800mm (HxW)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
9. Panel for square measuring instruments
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
689.5 mm
Product Net Height
199 mm
Product Net Depth / Length
12.7 mm
Product Net Weight
1.590 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.630 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
