ABB EH3472K Control and Automation Board - CE Certified
Part Number: EH3472K
Quick Summary
ABB EH3472K Control and Automation Board is designed to streamline panel automation in AM2 cabinets and IS2 enclosures. It addresses the challenge of integrating four 72x72 mm instruments into a compact, pre-assembled kit. The product carries CE conformity, RoHS compliance, and REACH declarations, ensuring regulatory alignment for industrial environments. With an orange peel finish in RAL 7035 and compatibility with IS2 Enclosures for Automation, it supports faster installation and easier service. This translates to reduced downtime and quicker changeovers for OEMs and integrators. Featuring modular mounting options and pre-assembled kits, it simplifies sourcing and project planning. Designed for IS2 enclosures and AM2 cabinets, it aligns with industry standards for scalable automation projects.
Product Information
Extended Description

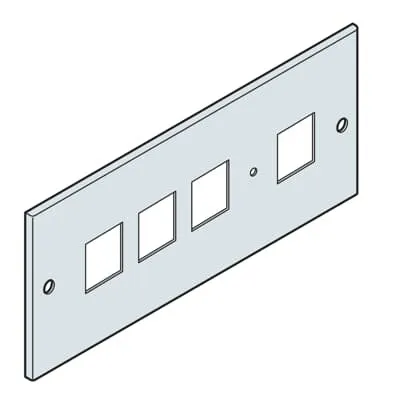

EH3472K ABB: Panel for n°4 instruments 72x72mm 200x800mm (HxW)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
9. Panel for square measuring instruments
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
689.5 mm
Product Net Height
199 mm
Product Net Depth / Length
12.7 mm
Product Net Weight
1.590 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.630 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled kit with mounting options → Business Impact: Reduces field installation time and minimizes human error during panel assembly → Application: Ideal for new builds or retrofits in AM2 cabinets and IS2 enclosures. Feature: 12 modular apparatus compatibility → Business Impact: Enables flexible I/O and control integration without custom fabrication → Application: Suits multi-instrument panels needing compact, modular layouts in automation dashboards. Feature: Surface finishing and material robustness → Business Impact: Durable, corrosion-resistant enclosure that maintains aesthetic consistency in harsh environments → Application: Factory floors and control rooms where cosmetic uniformity matters. Feature: Dimensions and weight optimization → Business Impact: Facilitates transport, rack mounting, and serviceability with predictable handling → Application: Large-scale deployments requiring scalable reference depths (300–1000 mm) and heights (1400–2200 mm). Feature: Compliance and standards alignment → Business Impact: Simplifies certification processes, reduces regulatory risk, and expedites audits → Application: OEMs delivering CE, RoHS, REACH compliant control panels. Feature: Compatibility with IS2 enclosures and AM2 cabinets → Business Impact: Streamlined procurement and faster project timelines due to proven compatibility → Application: Automation installations in manufacturing lines and process industries. Feature: Instrument panel support with 72x72 mm instruments → Business Impact: Clear, standards-based instrument integration improves maintainability and upgradeability → Application: Control and instrument panels within industrial automation architectures. Feature: WEEE, RoHS, REACH disclosures → Business Impact: Regulatory transparency reduces lifecycle risk and waste-related concerns → Application: Compliance-driven deployments in regulated environments. Feature: ETIM and EN classification alignment → Business Impact: Improves catalog accuracy, procurement efficiency, and downstream maintenance planning → Application: Industry-standard parts management for large OEMs.
Get a Quick Quote for a ABB EH3472K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH3472K?
Enquire Now
FAQs
EH3472K is designed for straightforward integration as a pre-assembled kit or kit-based mounting. For retrofits, plan standard panel cutouts for four 72x72 mm instruments and align with IS2 enclosure mounting footprints. The kit approach minimizes on-site wiring errors, speeds up commissioning, and reduces engineering hours by providing a defined, plug-and-play framework that matches AM2 and IS2 standards.
EH3472K supports IS2 enclosures with compatible mounting features and an option set that includes kit and pre-assembled configurations. This combination ensures reliable panel integration, reduces field assembly risk, and accelerates project timelines by enabling quick installation, aligned with standard IS2 enclosure practices.
Yes. EH3472K carries CE conformity and RoHS/REACH declarations, indicating compliance with essential EU product safety, environmental, and chemical regulations. For projects, this reduces compliance risk, simplifies audits, and supports enterprise sustainability goals while ensuring the enclosure meets industry-standard restrictions on hazardous substances.
Absolutely. The pre-assembled, modular design reduces installation time and post-install wiring complexity. By leveraging a standardized instrument footprint and durable pickled steel with an orange peel finish, maintenance visits are quicker, spare parts alignment is clearer, and lifecycle costs are lowered through easier upgrades and fewer on-site modifications.
Customers can expect faster project delivery due to modular, pre-assembled construction, reduced commissioning time, and improved spare parts management thanks to standardized dimensions and compatibility. The CE, RoHS, REACH compliance, and ETIM classification also lower regulatory risk and procurement friction, contributing to a favorable total cost of ownership over the enclosure lifecycle.
