ABB EH3496K Control and Automation Board - CE Certification
Part Number: EH3496K
Quick Summary
ABB EH3496K is a control and automation board for AM2 cabinets and IS2 enclosures in automation systems. When panel space is at a premium, engineers need modular, pre-assembled solutions that simplify wiring and reduce installation time. This unit carries CE conformity, RoHS and REACH declarations to support regulatory compliance and safe operation on the shop floor. Coupled with its standardized reference depths and color-fast finish (RAL 7035), it accelerates procurement while maintaining mounting compatibility across multiple enclosure bodies. By choosing this panel, teams gain predictable installation schedules, traceable compliance documentation, and reduced total cost of ownership through modular reuse and easier maintenance.
Product Information
Extended Description

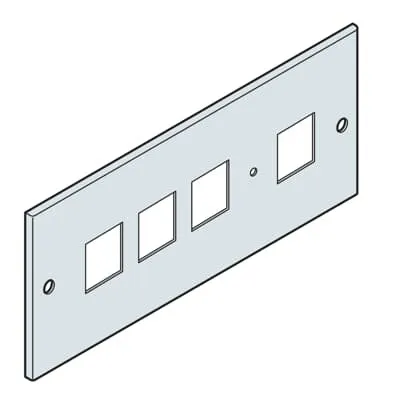

EH3496K ABB: Panel for n°4 instruments 96x96mm 200x800mm (HxW)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
9. Panel for square measuring instruments
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
689.5 mm
Product Net Height
199 mm
Product Net Depth / Length
12.7 mm
Product Net Weight
1.590 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.630 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Compatibility and mounting versatility enable plug-and-play integration with AM2 Cabinets and IS2 Enclosures for automation, with options for both kit and pre-assembled installation. This reduces field wiring errors and speeds commissioning, delivering measurable time savings on projects and lower labor costs. The panel’s pickled steel substrate with Orange Peel finish (RAL 7035) provides durable resistance to industrial environments, improving long-term reliability and lowering maintenance cycles. Its compact footprint (689.5 mm width, 199 mm height, 12.7 mm depth) and reference depths (300–1000 mm) support scalable instrument layouts, enabling flexible configurations without costly redesigns. The 1.590 kg net weight keeps handling straightforward during installation, while keeping a sturdy enclosure presence. RoHS and REACH declarations, plus a CE conformity claim, reduce regulatory risk and simplify supplier audits. The data sheet and IS2 Enclosures Technical Catalogue 2024 documentation further assist procurement, installation planning, and future upgrades.
