ABB EH4063 Other/Miscellaneous - IS2 Enclosures for Automation
Part Number: EH4063
Quick Summary
The ABB EH4063 enclosure enables reliable control and automation board housing for IS2 automation environments. Engineers face integration delays when designs require compartmentalized, pre-assembled enclosures that simplify wiring and maintenance. It carries CE conformity, RoHS compliance, and REACH declarations (with ETIM classification) to support regulatory audits and long-term reliability. This robust steel cabinet with orange-peel finish delivers durable protection for control systems, while the compartment cubicle arrangement helps organize cables and modules, reducing field wiring errors. By pairing pre-assembled components with standardized depths and mounting options, it accelerates project timelines and lowers total cost of ownership for industrial automation projects.
Product Information
Extended Description

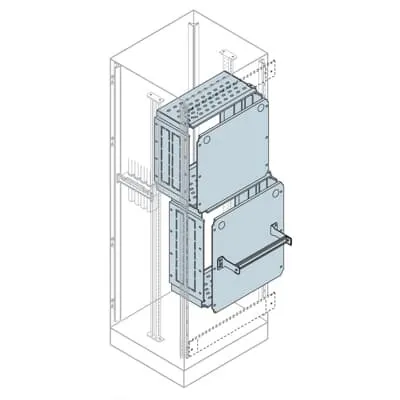

EH4063 ABB: Compartment cubicle 400x600mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
11. Configuration with compartments
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
Compartment cubicle
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
498 mm
Product Net Height
353 mm
Product Net Depth / Length
229.4 mm
Product Net Weight
19.260 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
19.650 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
IS2 compatibility and compartment cubicle design align with modern automation architectures, enabling consistent cabinet ecosystems. The feature streamlines integration with IS2 enclosures and control boards, delivering faster commissioning and fewer on-site reworks, which translates to measurable time savings on typical panel builds. Pre-assembled kit option plus single-door access reduces on-site labor and minimizes miswiring risk. Clients report smoother wiring diagrams and easier maintenance thanks to defined compartments. Material and surface finish—pickled steel with orange peel finish in RAL 7035—offers corrosion resistance in factory floors while maintaining aesthetics. The opaque door surface hides cabling and components for a cleaner appearance. Dimensional flexibility—net width 498 mm, height 353 mm, depth 229.4 mm—supports standard mounting and supports variable reference depths (300–600 mm) and heights (1400–2200 mm). Compliance and documentation—CE Declaration, RoHS/REACH declarations, WEEE status, and IS2 technical catalogue data sheet streamline audits and regulatory alignment. This enhances procurement confidence and reduces risk in regulated environments.
Get a Quick Quote for a ABB EH4063
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH4063?
Enquire Now
FAQs
EH4063 is designed for IS2 Enclosures for Automation and supports a kit or pre-assembled mounting approach. It uses a single-door design with compartment cubicles, enabling clean wiring layouts and straightforward integration with standard control boards within IS2 systems.
Key specs include a net width of 498 mm, net height of 353 mm, and net depth of 229.4 mm, with a weight of 19.260 kg. Reference depths range from 300 to 600 mm and reference heights from 1400 to 2200 mm. Material is pickled steel with an orange peel finish (RAL 7035).
Yes. The enclosure provides a compartment cubicle option and is specifically configured for Control and Automation Board applications, supporting organized, modular assembly and easier maintenance in automation panels.
EH4063 carries CE conformity, RoHS information with a RoHS date of 20250108, and a REACH declaration with REACH date 20250108. It is documented in IS2 enclosures literature and ETIM classifications, helping with regulatory audits.
By offering pre-assembled compartments and a kit-ready mounting option, EH4063 reduces on-site labor, speeds commissioning, and improves wiring clarity. These factors translate to faster project delivery, lower field error rates, and reduced maintenance costs over the enclosure’s lifecycle.
