ABB EH4080 Control and Automation Board - IS2 Enclosures
Part Number: EH4080
Quick Summary
ABB EH4080 Control and Automation Board enables compact, ready-to-install cabinet solutions for automation control panels. Engineers often struggle with installation time and regulatory compliance when configuring modular enclosures for tight automation spaces. This model aligns with CE conformity, RoHS, and REACH declarations, reinforcing safe operation and environmental responsibility. The IS2 enclosure approach provides a pre-assembled compartment cubicle with robust pickled steel, finished in RAL 7035, to minimize field wiring and assembly steps. Coupled with compatible mounting kits and standardized depths, it delivers predictable lead times, reduced maintenance, and scalable configurations for evolving automation tasks in diverse industrial environments.
Product Information
Extended Description

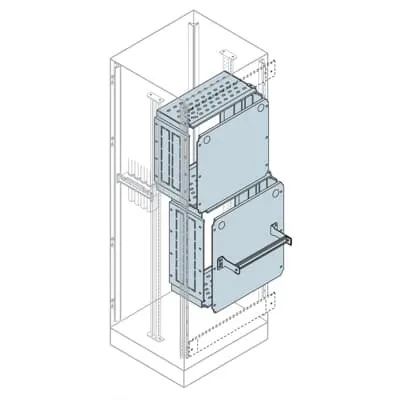

EH4080 ABB: Compartment cubicle 400x800mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
11. Configuration with compartments
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
Compartment cubicle
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
698 mm
Product Net Height
353 mm
Product Net Depth / Length
229.4 mm
Product Net Weight
25.680 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
26.200 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Pre-assembled compartment cubicles shorten installation time and reduce on-site wiring errors, delivering faster time-to-commission for automation panels. The business impact is lower labor costs and fewer field modifications, with consistent fit and finish across units. In practice, the EH4080 supports IS2 enclosure configurations for automation and is well-suited for OEM control cabinets in manufacturing lines. Durability is enhanced by pickled steel with an orange peel surface in RAL 7035, delivering corrosion resistance in harsh environments and a clean, maintenance-friendly exterior that reduces repainting and downtime. The enclosure’s mounting type kit or pre-assembled solution enables flexible integration with existing frames and rails, minimizing field adaptation and accelerating deployment in multi-panel layouts. Compliance is built in through RoHS and REACH declarations, supporting regulatory programs while enabling cost control through standardized components. Dimensions and references offer predictable design, with reference depths from 300 to 1000 mm and a fixed width around 800 mm, simplifying procurement and inventory management. Documentation and support are streamlined by IS2 data sheets, CE declarations, and installation instructions that minimize risk during commissioning and provide a clear maintenance path for service teams.
Get a Quick Quote for a ABB EH4080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH4080?
Enquire Now
FAQs
ABB EH4080 ships as a pre-assembled kit with compartment cubicles, designed to reduce installation time and wiring mistakes. Plan for the available reference depths up to 1000 mm and a fixed 800 mm width; ensure proper door alignment and access for cable entries. Use IS2-compatible mounting kits to maintain a clean, compliant control cabinet.
EH4080 is specified as an accessory type with compartment cubicles, aligning with IS2 enclosures for automation and a control and automation board product class. It provides scalable compartment layouts within a single enclosure, enabling modular expansion without replacing the cabinet. This supports faster customization and standardization across multiple control panels.
EH4080 carries a CE Declaration of Conformity and RoHS information with a RoHS date of 20250108, plus a REACH declaration and date. It is categorized under WEEE as product not in WEEE scope and adheres to ETIM classifications for enclosure components, ensuring compliance across electrical and industrial standards.
Yes. The EH4080 uses a mounting kit or pre-assembled configuration designed for IS2 enclosures and automation panels. It matches reference depth options (300–1000 mm) and widths around 800 mm, with a single door. The packaging and documentation (IS2 data sheet and 1STM604121R0006) ensure straightforward integration.
By reducing field wiring, simplifying assembly, and delivering durable RAL 7035 steel with a reliable finish, EH4080 lowers maintenance cycles and downtime. Standardized compartments streamline spare parts, shorten commissioning, and improve overall lifecycle costs for automation projects in manufacturing and process industries.
