ABB EH4081K Control and Automation Board - IS2 Enclosures
Part Number: EH4081K
Quick Summary
ABB EH4081K is a control and automation board for IS2 enclosures in industrial control panels. Upgrading a panel often stalls on misaligned mounting, lengthy assembly, and field-fit gaps. This product carries CE conformity, RoHS, and REACH declarations, supported by a formal IS2 Declaration of Conformity. With an orange-peel finish in RAL 7035 and options for pre-assembled or kit mounting, it accelerates deployment, reduces field retrofit risks, and offers a reliable front-panel solution for automation cabinets. Engineers benefit from defined dimensions and mounting standards that align with IS2 catalogues, while procurement teams appreciate consistent sourcing and reduced vendor fragmentation across automation projects.
Product Information
Extended Description

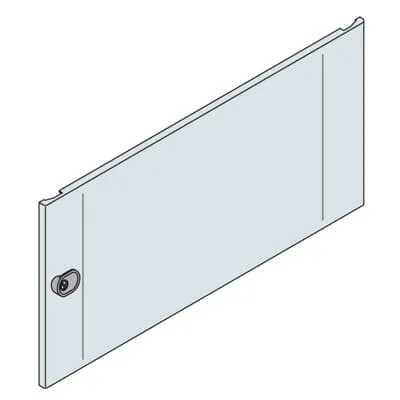

EH4081K ABB: Front panels for compartments 400x800mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Mounting Type
Pre assembled | Kit
Product Type
5B5B30B370
Door Type
Panel Door
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
778.4 mm
Product Net Height
375 mm
Product Net Depth / Length
16 mm
Product Net Weight
7.420 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
7.570 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: IS2 enclosure compatibility ensures a precise fit across automation cabinets. Impact: Minimizes field rework and engineering time, enabling faster project delivery. Application: Ideal for retrofits and new builds where IS2 enclosures are the standard choice. Feature: Mounting options available as Pre-assembled or Kit. Impact: Shortens on-site assembly and commissioning, improving time-to-production. Application: Suitable for panel manufacturers and system integrators pursuing flexible deployment. Feature: Durable surface and material. Impact: Orange-peel finish in RAL 7035 on pickled steel yields corrosion resistance and consistent aesthetics in harsh industrial environments. Application: Beneficial for factory floors and harsh environments where appearance and longevity matter. Feature: Clear dimensional and compatibility data. Impact: Supports accurate layout planning and reduces misfits during cabinet design with reference depths/heights. Application: Facilitates quick spec verification during engineering reviews. Feature: Regulatory compliance and classifications. Impact: CE conformity (Declaration of Conformity IS2), RoHS and REACH compliance streamline approvals and supply chain risk management. Application: Essential for regulated industries and multinational deployments. Feature: Front-panel suitability for automation workflows. Impact: Standardized panel access and compatible door type (Panel Door) simplify maintenance and future upgrades. Application: Aligns with ETIM classifications and automation lifecycle planning.
Get a Quick Quote for a ABB EH4081K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH4081K?
Enquire Now
FAQs
The EH4081K is designed for IS2 enclosure systems, supporting 400x800 mm compartment fronts and standard 778.4 mm width with adjustable reference heights. It offers both pre-assembled and kit mounting options to fit diverse panel fabrication workflows.
Key dimensions include a 778.4 mm net width, 375 mm net height, and 16 mm net depth. Reference depths span 400–1000 mm, and reference heights cover 1800–2200 mm, with a fixed reference width of 800 mm to guarantee panel compatibility.
Yes. It carries CE conformity via a Declaration of Conformity IS2, and meets RoHS and REACH requirements, ensuring regulatory compliance in regulated markets and simplifying supplier qualification.
By offering pre-assembled or kit mounting, a durable orange-peel finish (RAL 7035), and defined panel-front compatibility, EH4081K reduces on-site assembly time, ensures reliable fit, and lowers retrofit risk in automation projects.
EH4081K provides faster deployment, standardized front-panel integration, and improved lifecycle reliability. Its documented dimensions and compliance support smoother procurement, fewer engineering changes, and lower total cost of ownership in IS2-based automation environments.
