ABB EH4085 Other/Miscellaneous - CE Declaration of Conformity
Part Number: EH4085
Quick Summary
ABB EH4085 is a modular back plate for AM2 cabinets and IS2 enclosures in automation. When space is tight and routing is complex, the right mounting kit saves time and reduces field errors. The part carries CE conformity, RoHS compliance dated 2025-01-08, and REACH information to support regulatory and environmental requirements. By aligning with IS2 enclosure standards and ETIM classifications, ABB enables predictable, scalable panel builds. This solution also supports pre-assembled mounting options, improving procurement efficiency and simplifying installation workflows for control and automation boards.
Product Information
Extended Description

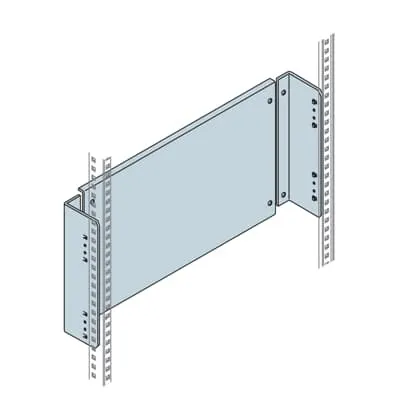

EH4085 ABB: Blind apparatus holder back plate 400x800mm (HxW)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
4. Blind apparatus holder Mounting plates
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
546 mm
Product Net Height
384 mm
Product Net Depth / Length
98 mm
Product Net Weight
8.810 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
8.990 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
The EH4085 back plate uses a robust pickled steel sheet with an orange peel finish (RAL 7035), delivering durable protection in harsh industrial environments and a consistent corporate look across equipment housings. This material choice translates into lower maintenance costs and predictable machinability for site technicians, while the surface treatment enhances corrosion resistance in automated industrial environments. The product ships as a kit or pre-assembled mounting solution for 12 modular apparatus, enabling faster installation and fewer field adjustments, which reduces labor costs and project timelines in AM2 cabinets and IS2 enclosures. The modular mounting capability integrates with blind apparatus holder mounting plates, improving component density and simplifying future upgrades on Control and Automation Boards. With CE, RoHS, and REACH compliance, procurement teams can confidently standardize across multiple projects while minimizing regulatory risk. Dimensions and weight are optimized for logistics and handling, supporting efficient warehouse planning and on-site deployment. Industry-standard references like IS2 Enclosures Technical Catalogue 2024 ensure compatibility with existing enclosure ecosystems and ETIM classification supports supply chain data hygiene.
Get a Quick Quote for a ABB EH4085
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH4085?
Enquire Now
FAQs
EH4085 is designed to fit AM2 Cabinets and IS2 Enclosures for automation, supporting 12 modular apparatus and a pre-assembled mounting kit. Its dimensions (546 mm width, 384 mm height, 98 mm depth) align with common back plate standards, while the mounting options simplify integration with existing control and automation boards. The result is a streamlined assembly process with predictable alignment and mounting accuracy, reducing rework and field errors.
Key dimensions include 546 mm net width, 384 mm net height, and 98 mm net depth, with reference depths/heights up to 1000 mm and 2200 mm respectively. Mounting options include a kit or pre-assembled configuration for 12 modular apparatus, plus four blind apparatus holder mounting plates. These features support flexible layouts for Control and Automation Boards while preserving panel integrity and ease of service.
Yes. EH4085 is explicitly categorized for Control and Automation Boards and is compatible with AM2 cabinets and IS2 enclosures. Its modular apparatus approach and back plate design are intended to optimize mounting density, improve cable routing, and facilitate future expansions within automation systems, making it a practical choice for evolving control panel applications.
EH4085 includes a CE Declaration of Conformity, RoHS compliance (RoHS information with 20250108 date), and REACH information (false for substances >0.1 mass percentage, with 20250108 date). WEEE categorization is noted as Product Not in WEEE Scope. These certifications support regulatory adherence, waste handling expectations, and safer material usage in industrial environments.
The kit/pre-assembled mounting option reduces installation time and field labor, lowers the risk of misalignment, and accelerates project delivery. Material finish (RAL 7035 orange peel) provides consistent aesthetics and corrosion resistance, while standard dimensions and references (multiple depth and height options) improve procurement predictability and inventory planning, delivering a favorable total cost of ownership for automation projects.
