ABB EH5060 Other/Miscellaneous - IS2 Enclosures

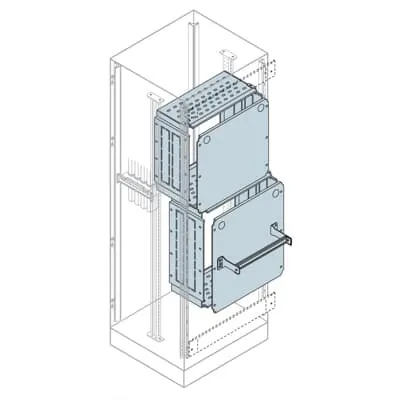

Compartment cubicle configurations in EH5060 deliver a modular approach to panel design. Each enclosure can be provisioned with integrated compartments, allowing dedicated bays for controllers, power supplies, and field devices. The result is a cleaner wiring loom, fewer cross-connections, and faster fault isolation during maintenance. This aligns with IS2 Enclosures for Automation, helping engineers organize complex automation strategies while preserving accessibility for diagnostics and upgrades. Mounting Type options include a kit or pre-assembled assembly, which translates into shorter project timelines and reduced installation risk. Pre-assembled options ensure proper alignment of doors and hinges, minimizing on-site adjustments. For system integrators deploying Control and Automation Boards, this approach accelerates commissioning and reduces installation labor costs without compromising enclosure integrity or protection class. Material and surface finishing combine durability with consistent aesthetics. The EH5060 uses pickled steel sheet with orange peel texture in RAL 7035 light grey, delivering a robust cabinet that withstands factory environments. Opaque door surfaces maintain professional appearance and simplify cleaning. The finish is compatible with IS2 automation catalog requirements and supports long service life in demanding applications. Compliance and declarations are built in. The enclosure carries a Declaration of Conformity CE mark and RoHS/REACH compliance, backed by REACH information and dates, ensuring regulatory adherence. WEEE classification situates the product appropriately in environmental programs. ETIM and eClass classifications (EC000747, V11.1 27182204) support accurate digital cataloging and procurement workflows. Dimensional data and mounting versatility support precise space planning. With a product net width of 498 mm and net height of 453 mm, plus a depth of 229.4 mm, the EH5060 integrates easily with reference depths and heights (300–600 mm depth, 1400–2200 mm height) and a 600 mm reference width. This modular footprint enables scalable solutions for mid-sized automation cabinets and control panels while remaining cost-efficient.
