ABB EH5080 Other/Miscellaneous - IS2 Enclosures for Automation
Part Number: EH5080
Quick Summary
ABB EH5080 is a control and automation cabinet designed for IS2 enclosures used in automation projects. Engineers and maintenance teams face challenges with modularity, inconsistent fit, and lengthy installation when building control cabinets in harsh industrial environments. This solution aligns with CE declarations, RoHS compliance, and REACH declarations to ensure safe, interoperable performance across systems. By combining a pre-assembled compartment kit with a durable pickled steel body finished in orange peel (RAL 7035), it reduces on-site assembly time, improves repeatability, and supports scalable panel configurations for evolving automation needs.
Product Information
Extended Description

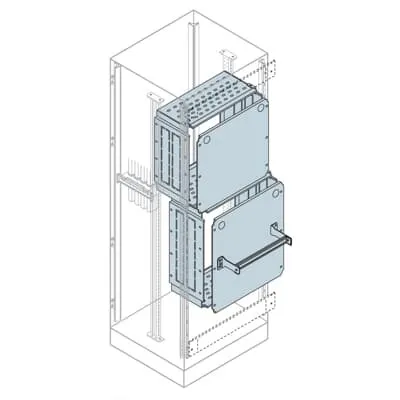

EH5080 ABB: Compartment cubicle 500x800mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
11. Configuration with compartments
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
Compartment cubicle
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
698 mm
Product Net Height
453 mm
Product Net Depth / Length
229.4 mm
Product Net Weight
32.10 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
32.750 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Compartment cubicle integrated into the kit provides organized separation for power, control, and communication modules. Business Impact: Faster integration, reduced wiring errors, and repeatable layouts across multiple boards. Application: IS2 automation enclosures housing control and automation boards in factory lines. Feature: Mounting Type Kit with pre-assembled configuration. Business Impact: Simplified on-site installation and higher first-pass quality, lowering labor costs. Application: New builds and retrofits in existing IS2 systems. Feature: Durable pickled steel sheet with orange peel finish in RAL 7035. Business Impact: Improved corrosion resistance and long-term maintenance visibility, supporting harsh environments. Application: Industrial facilities requiring robust enclosures. Feature: Flexible reference depths and heights. Business Impact: Scalable footprint from 300–1000 mm depth and 1400–2200 mm height, enabling custom fits. Application: Custom control panels with evolving equipment needs. Feature: Compliance and documentation support. Business Impact: Reduces regulatory risk with CE, RoHS, REACH, ETIM alignment and clear sourcing data. Application: Regulated manufacturing settings and audited installations.
Get a Quick Quote for a ABB EH5080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH5080?
Enquire Now
FAQs
EH5080 is specifically designed for IS2 Enclosures for Automation, featuring a pre-assembled compartment cubicle kit and a single-door configuration. This compatibility ensures standardized assembly, proven mounting footprints, and streamlined procurement for automation projects across plants and facilities.
Key dimensions include a product net width of 698 mm, net height of 453 mm, and net depth of 229.4 mm. Reference depths range from 300 to 1000 mm while reference heights span 1400 to 2200 mm, with a reference width of 800 mm. Mounting is offered as a kit or pre-assembled configuration for flexibility.
Yes. The enclosure carries a CE Declaration of Conformity, RoHS information with a 20250108 RoHS date, and REACH declarations confirming that it does not contain substances above 0.1 mass percentage. WEEE categorization places it as not in WEEE scope, supporting regulatory conformity in modern factories.
Yes. EH5080 supports adjustable references: depths from 300 mm to 1000 mm and heights from 1400 mm to 2200 mm, with an 800 mm reference width. This enables scalable configurations for a wide range of control and automation board layouts while maintaining a consistent enclosure interface.
The design reduces on-site assembly time through a pre-assembled compartment kit, improves installation consistency, and supports regulatory compliance (CE, RoHS, REACH). Its modular depth and height options enable faster project scoping, easier maintenance, and a lower total cost of ownership for automation cabinet programs.
