ABB EH6010K Control and Automation Board - CE Certified
Part Number: EH6010K
Quick Summary
The ABB EH6010K Control and Automation Board is a pre‑assembled control module designed for IS2 enclosures in automation projects. Engineers often wrestle with mounting efficiency, component compatibility, and long lead times when integrating panels and automation modules. Key certifications such as CE (Declaration of Conformity), RoHS compliance, and REACH declarations provide regulatory assurance for global deployments, while ETIM classification supports consistent product data across procurement platforms. With two compensation panels and a panel door, this solution reduces installation time and supplier risk. Designed for IS2 enclosures for automation, it delivers reliable, scalable mounting in 600 mm wide, 1800 mm high configurations, with options to suit varied depths and panel layouts.
Product Information
Extended Description

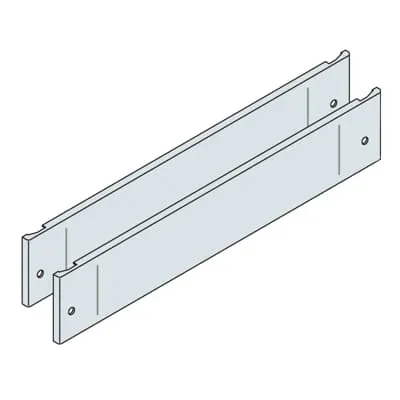

EH6010K ABB: N°2 compensation panels 100x600mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Mounting Type
Pre assembled | Kit
Product Type
5B5B30B370
Door Type
Panel Door
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
589.4 mm
Product Net Height
97.5 mm
Product Net Depth / Length
12.7 mm
Product Net Weight
2.880 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.940 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: IS2 enclosure compatibility and mounting versatility → Business Impact: Simplifies integration with standard IS2 enclosures, reducing engineering effort and change orders → Application: Ideal for automation panels in factory floors and machine builds. Feature: Pre assembled | Kit mounting type → Business Impact: Accelerates field installation and minimizes on-site wiring errors → Application: Fast-track panel builds in assembly lines and turnkey projects. Feature: Two compensation panels 100x600 mm → Business Impact: Flexible internal layout for power and control modules, improving heat management and accessibility → Application: Control cabinet redesigns or upgrades in existing lines. Feature: Panel door with orange peel finish (RAL 7035) → Business Impact: Durable exterior resisting wear in harsh environments, preserving appearance and corrosion resistance → Application: Plant floors with frequent access and routine maintenance. Feature: Pickled steel sheet material → Business Impact: Strong, cost-effective enclosure backbone providing long-term mechanical stability → Application: Heavy-use automation cabinets in manufacturing. Feature: RoHS and REACH compliance + CE conformity → Business Impact: Regulatory compliance minimizes risk in regulated markets and simplifies supplier audits → Application: Global deployments from Europe to Asia. Feature: Reference Depth/Length 400–1000 mm and Reference Height 1800–2200 mm → Business Impact: Modular depth and height options enable precise fit within existing IS2 configurations → Application: Retrofit projects and scalable automation architectures. Feature: Surface finishing and color (RAL 7035) → Business Impact: Consistent corporate branding and easy maintenance in industrial settings → Application: Standardized enclosures across the plant including external control panels.
Get a Quick Quote for a ABB EH6010K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH6010K?
Enquire Now
FAQs
Installation is streamlined by the pre assembled kit approach, designed for IS2 enclosures. Start with the enclosure frame, mount the EH6010K module in the standard 600 mm width, secure with the supplied mounting hardware, and then attach the two compensation panels 100x600 mm. Refer to the IS2 Enclosures Technical Catalogue 2024 and the installation manual 1STM604121R0006 for step-by-step guidance and safety notes.
Key specs include a 600 mm reference width, 1800 mm reference height, and 400 mm depth with a net width of 589.4 mm and weight around 2.88 kg. The unit uses pickled steel sheet with an orange peel finish (RAL 7035) and a panel door. These features deliver robust mechanical protection, predictable mounting, and consistent surface durability in demanding automation environments.
Yes. The EH6010K is specifically marketed for IS2 enclosures for automation, with mounting versatility and a ready-made panel kit. Its size range supports modern machine builds, allowing quick integration of control and automation boards while maintaining a clean, compliant enclosure environment.
The EH6010K carries CE conformity with Declaration of Conformity, RoHS compliance, and REACH information. ETIM classification EC000747 applies to door/operating panels. These certifications help ensure regulatory compliance, supplier transparency, and easier cross-border procurement and audits for regulated industries.
The combined benefits of faster installation (pre assembled kit), reliable assembly with standardized IS2 compatibility, and regulatory compliance reduce project lead times and risk. Long-term maintenance is simplified by durable materials, standardized dimensions, and modular depth options, delivering lower total cost of ownership and quicker time-to-value for automation investments.
