ABB EH8010K Control and Automation Board - CE IS2
Part Number: EH8010K
Quick Summary
ABB EH8010K is a control and automation board for IS2 automation enclosures in industrial control cabinets. Design engineers often struggle with integration drift and long commissioning when panels are not pre-assembled or properly documented. It carries CE conformity, RoHS and REACH declarations, and ETIM classifications to simplify sourcing and compliance. Optimized for 800 by 1800 mm panels, IS2 enclosures, and pre-assembled mounting, it enables faster procurement and scalable implementation. The robust pickled steel construction, RAL 7035 finish, and 2 panel doors support durable, compliant field service. These features collectively reduce total cost of ownership by streamlining installation, testing, and ongoing maintenance.
Product Information
Extended Description

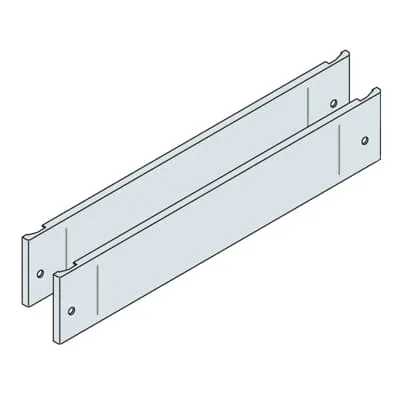

EH8010K ABB: N°2 compensation panels 100x800mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Mounting Type
Pre assembled | Kit
Product Type
5B5B30B370
Door Type
Panel Door
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
789.4 mm
Product Net Height
97.5 mm
Product Net Depth / Length
12.7 mm
Product Net Weight
3.840 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.920 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: Pre-assembled mounting kit and IS2 enclosure compatibility simplify integration. This reduces on-site assembly time and wiring errors, accelerating panel commissioning. It is ideal for control cabinets in automated manufacturing lines that demand rapid deployment and repeatable assembly across multiple projects. Feature → Business Impact → Application: Durable pickled steel sheet with Orange Peel surface in RAL 7035, coupled with a panel door. This combination enhances environmental durability and reduces repainting or corrosion-related downtime. Use it in factory floors with dust and temperature variation to maintain a consistent appearance and long service life. Feature → Business Impact → Application: Clear size and depth options; Product Net Width 789.4 mm, Net Height 97.5 mm, Net Depth 12.7 mm, reference depths 400-1000 mm and heights 1800-2200 mm. The alignment with modular dimensions minimizes layout surprises and supports reuse across different line configurations. It also simplifies spare-part planning and stock management. Feature → Business Impact → Application: Full compliance package including CE Declaration of Conformity, RoHS information and REACH declaration; ETIM classification EC000747; WEEE category 'Product Not in WEEE Scope'. This reduces regulatory risk, speeds supplier qualification, and improves data accuracy for procurement ERP. Feature → Business Impact → Application: Comprehensive documentation and installation resources such as IS2 Enclosures Technical Catalogue 2024 and installation manual 1STM604121R0006. These assets speed onboarding, support compliant sourcing, and enable traceability from spec to field install. The result is a more predictable project timeline and lower change orders.
Get a Quick Quote for a ABB EH8010K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH8010K?
Enquire Now
FAQs
Yes. The EH8010K is designed for IS2 Enclosures for Automation and ships as a pre-assembled kit or as a mounting-ready panel. This dual mounting flexibility reduces field assembly steps and allows fast swap-ins in service environments. The kit supports panel doors and a robust pickled steel frame, enabling seamless integration with ABB and third-party components in automation panels.
Key dimensions include a product net width of 789.4 mm, height of 97.5 mm, and net depth of 12.7 mm, with reference depths from 400 to 1000 mm and reference heights from 1800 to 2200 mm. The product net weight is 3.840 kg, and the packaged weight is 3.920 kg. Plan for a standard 800 mm width and 1800 mm height enclosure.
The EH8010K ships with CE Declaration of Conformity, RoHS information, and REACH declaration. It also carries ETIM classification EC000747 and WEEE category indicating the product is not within WEEE scope. These certifications help streamline regulatory approvals and supplier qualification during procurement.
Installation resources include the ISO-compliant 1STM604121R0006 manual and the IS2 Enclosures Technical Catalogue 2024. A comprehensive data sheet is available from ABB’s popular downloads, and the CE conformity documents can be referenced in the Declaration of Conformity for auditable compliance.
Adopting the EH8010K reduces installation time, minimizes field wiring errors, and accelerates commissioning with a pre-assembled kit. Its standardized dimensions and robust finish lower maintenance costs, while CE, RoHS, and REACH compliance reduce regulatory risk. These factors combine to shorten project timelines and improve overall return on automation investments.
