ABB EH8080 Control Board - IS2 Enclosures for Automation
Part Number: EH8080
Quick Summary
EH8080 control board is a rugged ABB enclosure solution designed for automation panels in industrial environments. It addresses space constraints, modular configuration, and compliance challenges in control and automation cabinet design. This IS2 enclosure series supports CE conformity, RoHS, and REACH declarations, helping keep regulatory audits straightforward. With compartment cubicle options and a kit or pre-assembled mounting approach, installation is faster and wiring is more reliable, reducing commissioning time. By combining a pickled steel sheet construction with Orange Peel surface finishing (RAL 7035) and a single-door design, it delivers durable protection against demanding factory conditions. The enclosure aligns with ETIM, eClass, and EC000747 classifications, supporting seamless procurement and cross-system compatibility for industrial automation projects.
Product Information
Extended Description

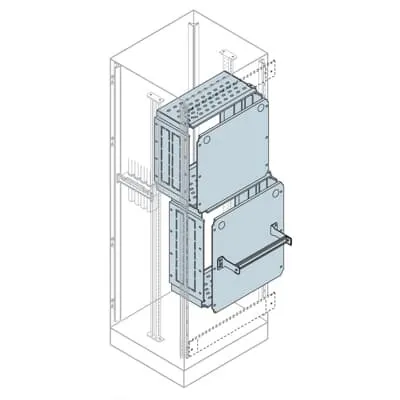

EH8080 ABB: Compartment cubicle 800x800mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
11. Configuration with compartments
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B370
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
Compartment cubicle
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
698 mm
Product Net Height
753 mm
Product Net Depth / Length
229.4 mm
Product Net Weight
19.999 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
20 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Designed for IS2 Enclosures for Automation, this model standardizes modular control cabinet installs and reduces engineering time. By aligning with industry classifications and ABB's enclosure family, engineers can reuse proven configurations across multiple projects, accelerating deployment in manufacturing lines. Kit or pre-assembled mounting supports flexible deployment, minimizing on-site wiring errors and shortening commissioning windows while allowing customers to choose off-site assembly or quick field mounting. The pickled steel sheet with Orange Peel finish in RAL 7035 delivers durable corrosion resistance, easy cleaning, and a consistent, professional appearance in harsh factory environments. Compartment cubicle design supports reference depths from 300 to 1000 mm and heights from 1400 to 2200 mm, with a net width near 698 mm and net height around 753 mm, enabling precise tailoring to control hardware. Compliance and documentation are built-in, including CE, RoHS, REACH declarations, ETIM/EC codes, and a dedicated installation manual to streamline procurement, maintenance, and future upgrades.
Get a Quick Quote for a ABB EH8080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH8080?
Enquire Now
FAQs
Install using the supplied mounting kit or choose the pre-assembled configuration to minimize field assembly. Follow the accompanying installation manual 1STM604121R0006 for step-by-step mounting, wiring, and compartment cubicle alignment to ensure a robust, serviceable panel.
The EH8080 carries CE conformity, RoHS compliance, and REACH declarations. It aligns with ETIM 8/9 EC000747 for door/operating panel classification, and is referenced in eClass V11.1 27182204, with WEEE considerations noted for proper lifecycle management.
The enclosure supports reference depths from 300 to 1000 mm and reference heights from 1400 to 2200 mm, with a reference width of 800 mm. Net dimensions are approximately 698 mm W x 753 mm H x 229.4 mm D, providing flexibility for modular automation hardware and compartments.
EH8080 uses pickled steel sheet with an orange peel finish (RAL 7035). This combination delivers durable corrosion resistance, ease of cleaning, and a consistent industrial appearance suitable for harsh factory environments, while meeting regulatory and environmental expectations.
Compartment cubicles improve wiring organization, enable modular component layout, and reduce maintenance time. The design supports faster commissioning, easier future upgrades, and compatibility with pre-assembled kits, contributing to lower total cost of ownership and more reliable control cabinet performance.
