ABB EH8081K Control and Automation Board - CE Certified
Part Number: EH8081K
Quick Summary
ABB EH8081K is a control and automation board for IS2 enclosure applications. Engineers often struggle with lengthy assembly and misalignment when integrating panel hardware, causing downtime and project delays. This product carries CE conformity, RoHS compliance, and REACH declarations, with ETIM and eClass classifications that streamline e-procurement and standardization across projects. The design supports pre-assembled or kit mounting, fits standard 800 mm compartment layouts, and features a durable orange-peel finish in RAL 7035 for long-term reliability. By combining modular fit, clear documentation, and consistent build quality, the EH8081K delivers faster deployments, reduced field service, and predictable maintenance planning for automation projects.
Product Information
Extended Description

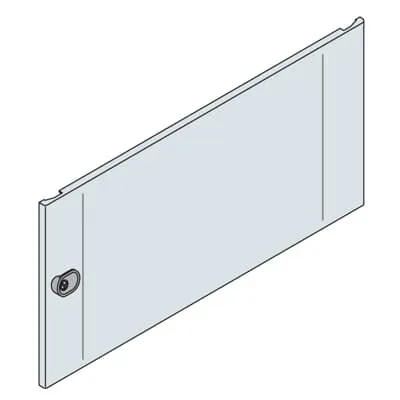

EH8081K ABB: Front panels for compartments 800x800mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Mounting Type
Pre assembled | Kit
Product Type
5B5B30B370
Door Type
Panel Door
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
778.4 mm
Product Net Height
775 mm
Product Net Depth / Length
16 mm
Product Net Weight
14.830 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
15.130 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
IS2 enclosure compatibility and flexible mounting options align EH8081K with pre-assembled or kit configurations. By matching standard IS2 dimensions, engineers reduce integration time and minimize field modifications, accelerating panel deployment in automation projects. The durable orange-peel finish in RAL 7035 protects the surface in demanding environments while preserving a professional appearance across installations, reducing repaint costs and downtime. The pickled steel sheet construction offers robust mechanical protection and predictable longevity in factory floors and control rooms, supporting long-term reliability and simplified maintenance. Full regulatory compliance with CE, RoHS, and REACH provides risk mitigation for regulated industries, while ETIM and eClass classifications improve data-driven procurement and supplier transparency. Variable reference depths and the standard 800 mm width enable flexible configurations, supporting depths from 400 to 1000 mm and heights from 1800 to 2200 mm for scalable automation boards. Pre-assembled or kit options simplify installation, reducing on-site labor and commissioning time, and documentation such as 1STM604121R0006 manuals enhances first-time fit and serviceability in complex automation projects.
Get a Quick Quote for a ABB EH8081K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EH8081K?
Enquire Now
FAQs
EH8081K is designed for IS2 enclosures and can be ordered as a pre-assembled unit or as a mounting kit. It fits standard IS2 compartment widths (800 mm) and supports depths from 400 to 1000 mm, with a total height range of 1800 to 2200 mm. This compatibility minimizes on-site fabrication and accelerates panel integration, while offering flexibility for future reconfigurations.
Key specs include a width of 778.4 mm, height of 775 mm, and a net depth of 16 mm, suited for 800 mm wide IS2 enclosures. The product weighs 14.830 kg and uses pickled steel sheet with an Orange Peel surface finished in RAL 7035. It is suitable for a control and automation board class and ships as a 1-piece package with instructions and data sheets available for reference.
Yes. The EH8081K is specifically marketed for IS2 enclosures in automation contexts, offering a compatible mounting approach (pre-assembled or kit), robust surface protection, and standardized dimensions. Its modular depths and heights support scalable control architectures, enabling streamlined integration with PLCs, I/O modules, and front-panel components in modern manufacturing lines.
EH8081K carries CE conformity with a Declaration of Conformity IS2, RoHS compliance with a stated RoHS date of 20250108, and a REACH declaration indicating no substances above 0.1 mass percentage. WEEE classification is not in scope, and ETIM/ eClass codes (EC000747 and V11.1 27182204) support data-standardized procurement and cross-system compatibility.
The EH8081K reduces installation time through pre-assembled options and standardized IS2 dimensions, cutting labor costs and commissioning downtime. Its durable finish and pickled steel construction minimize maintenance needs, while compliance documentation reduces regulatory risk. Over the life of the panel, these factors translate into lower total cost of ownership and higher system uptime for automated processes.
