ABB EK1280KN Control & Automation Board - IS2 Enclosures
Part Number: EK1280KN
Quick Summary
ABB EK1280KN is a control & automation board designed for IS2 enclosure systems in automation projects. A common pain point is slow integration and uncertain mounting fit when upgrading legacy panels. This solution delivers CE, RoHS, and REACH conformity, plus IS2 enclosure compatibility to streamline install and compliance. With robust base/top kit design and 1200x800 dimensions, you gain reliability and faster time-to-value. Engineers appreciate the 53 kg net weight and 40 kg load capacity for secure panel mounting, reducing field adjustments. The product is crafted from pickled steel with orange peel finish (RAL 7035) for durability in industrial environments. It ships as a ready-to-mount kit (Base/Top) and aligns with ETIM EC000744 classifications for efficient cataloging. The included installation references and documented dimensions help prevent rework during panel assembly.
Product Information
Extended Description

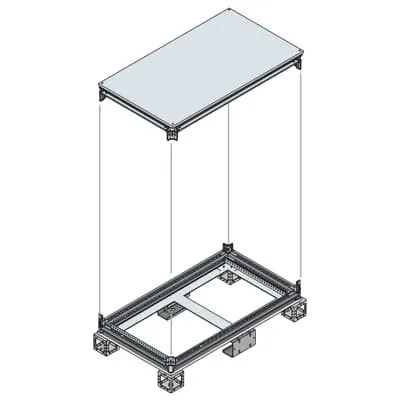

EK1280KN ABB: Base/top 1200x800mm WxD
Sub-Function 3
Top/Bottom
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Maximum Load Capacity
40 kg
Configuration Type
1. Base/top
Enclosure Type
Kit - Base/Top
Mounting Type
Kit
Product Type
5B5B20B210
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1194 mm
Product Net Height
335.5 mm
Product Net Depth / Length
1194 mm
Product Net Weight
53 kg
Reference Depth/Length
800 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
54.080 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000744 - Top-/floor element (enclosure/cabinet)
ETIM 9
EC000744 - Top-/floor element (enclosure/cabinet)
eClass
V11.1 : 27182405
Standards
See code for structure
Feature: Base/top kit with 1200x800 mm footprint provides a modular foundation for multi-panel layouts. Business Impact: Enables faster installation, easier field wiring, and scalable cabinet configurations, reducing commissioning time by up to several hours per panel. Application: Ideal for IS2 enclosures in automation lines where space planning and modularity are critical. Feature: Maximum load capacity of 40 kg supports heavier components and accessory mounting. Business Impact: Improves reliability in vibration-prone environments and minimizes the need for mid-install rework. Application: Suitable for mid-size control boards with multiple modules in automated processes. Feature: Pickled steel sheet with Orange Peel, RAL 7035 surface finishing delivers durable, easy-to-clean protection. Business Impact: Prolongs service life in harsh industrial environments and lowers maintenance costs. Application: Indoor automation cabinets requiring robust finishes. Feature: Kit-based enclosure with Base/Top configuration and mounting kit. Business Impact: Simplifies logistics, reduces on-site labor, and ensures repeatable assembly for large installations. Application: Preferred for scalable control cabinets in manufacturing cells and IS2 enclosures for automation. Feature: Compliance and classification support with CE, RoHS, REACH declarations, and ETIM EC000744 alignment. Business Impact: Accelerates regulatory readiness and cataloging while ensuring traceability during audits. Application: Suitable for global deployments needing documented compliance and standardized parts.
Get a Quick Quote for a ABB EK1280KN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EK1280KN?
Enquire Now
FAQs
EK1280KN uses a Base/Top kit design with mounting provisions that align to IS2 enclosure standards, enabling straightforward top/bottom assembly within 1200x800 mm footprints. The included mounting kit and documented installation reference (1STM604121R0006) reduce field adjustments and ensure repeatable, vibration-resistant mounting in automation cabinets.
Key specs include a 40 kg maximum load capacity, 53 kg product weight, and base/top dimensions of 1200x800 mm with a net width/depth of 1194 mm. The enclosure uses pickled steel with an orange peel finish (RAL 7035) for durability, and is CE, RoHS, and REACH compliant to support reliable automation installations.
Yes. This kit-based enclosure is designed for IS2 enclosures for automation and supports a wide range of control and automation boards. Its modular Base/Top configuration and 40 kg load rating make it suitable for mid-size control panels in manufacturing lines, enabling scalable deployments with consistent fit and performance.
EK1280KN includes a CE Declaration of Conformity, RoHS information and REACH compliance, with the WEEE category indicating that it is not in WEEE scope. The ETIM classification EC000744 confirms top-/floor-element compatibility for enclosure and cabinet catalogs, aiding compliance audits and procurement workflows.
Benefits include faster installation due to a ready-to-mount Base/Top kit, reduced rework from precise 1200x800 mm footprint, and long-term cost savings from a durable pickled steel construction with a robust orange peel finish. The common-use CE/ROHS/REACH compliance also reduces regulatory risks and accelerates global deployment of automation cabinets.
