ABB EK3040KN Control and Automation Board - CE Certified
Part Number: EK3040KN
Quick Summary
ABB EK3040KN control and automation board delivers integrated cable management for IS2 enclosures in manufacturing and process automation. Engineers often struggle with space constraints and regulatory-compliant cable routing during panel upgrades. This model carries CE conformity, RoHS compliance, and REACH declarations to help you meet critical standards. Its base/top kit design and 300x400 mm footprint support fast installation, scalable expansion, and reduced lifecycle costs. Designed for IS2 Enclosures for Automation, it integrates neatly with existing cabinets, simplifying maintenance and future upgrades. With a 15 kg nominal weight and 40 kg maximum load, it balances robust cable containment with serviceability. In practice, customers benefit from safer wiring, predictable downtime, and streamlined procurement through ETIM and eClass classifications.
Product Information
Extended Description

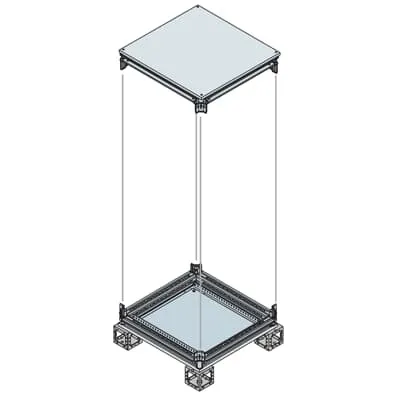

EK3040KN ABB: Base/top+ external cable container 300x400mm WxD
Sub-Function 3
Cable trough
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Maximum Load Capacity
40 kg
Configuration Type
1. Base/top
Enclosure Type
Kit - Base/Top
Mounting Type
Kit
Product Type
5B5B20B210
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
294 mm
Product Net Height
335.5 mm
Product Net Depth / Length
294 mm
Product Net Weight
15 kg
Reference Depth/Length
400 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
300 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
15.310 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002620 - Components for installation (enclosure/cabinet)
ETIM 9
EC002620 - Components for installation (enclosure/cabinet)
eClass
V11.1 : 27182811
Standards
See code for structure
Base/top kit configuration provides a ready-made foundation for enclosure interiors. This modular approach minimizes field rewiring and supports phased deployments, reducing downtime and capital expenditure. It is ideal for IS2 automation cabinets where future expansion or reconfiguration is anticipated. Cable trough design captures cables neatly from base to top, improving heat management and fault isolation. These improvements translate to faster commissioning and easier maintenance, especially in densely wired control panels. Built from pickled steel sheet with an orange peel finish in RAL 7035, the enclosure surfaces resist impact and corrosion in harsh environments. The robust material choice supports long service life and consistent aesthetic in multi-bay systems. The compact footprint uses a 300x400 mm base with a reference width of 300 mm and a variable height from 1400 up to 2200 mm. The module weighs 15 kg and supports up to 40 kg of load, balancing enclosure integrity with ease of handling. Declaration of Conformity CE, RoHS information dated 20250108, and REACH declaration ensure regulatory alignment for industrial deployments. ETIM and eClass references support procurement data management while IS2 Enclosures Technical Catalogue 2024 provides technical guidance. Compatibility with IS2 Enclosures for Automation ensures seamless integration with ABB control and automation boards. Packaging is one piece per package, simplifying stocking and on-site handling.
Get a Quick Quote for a ABB EK3040KN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EK3040KN?
Enquire Now
FAQs
To install the EK3040KN, confirm the enclosure is IS2 compliant, align the base/top kit to the enclosure frame, and secure the mounting kit as specified. Route cables through the integrated cable trough, ensuring the 40 kg load limit is respected and the 15 kg unit weight aids handling during assembly. This approach minimizes downtime during upgrades and preserves cabinet integrity.
Key specs include a 300x400 mm footprint, product net width 294 mm, net height 335.5 mm, and net depth 294 mm. The assembly weighs 15 kg and supports a maximum load of 40 kg. The finish is orange peel in RAL 7035 on pickled steel sheet, designed for robust industrial environments.
Yes. The EK3040KN carries a CE Declaration of Conformity under IS2 enclosures, with RoHS information dated 20250108 and a REACH declaration confirming no substances above regulatory thresholds. These certifications support regulatory compliance for global industrial deployments and help with supplier audits.
EK3040KN is designed for IS2 Enclosures for Automation, providing a base/top kit that houses a control and automation board. It is ideal for new installations or upgrades in manufacturing and process automation where organized cable management, modular expandability, and safe maintenance access are priorities.
The EK3040KN offers improved reliability through better cable containment and heat management, reducing fault-related downtime. Its modular base/top design speeds upgrades, lowers replacement costs, and streamlines procurement with ETIM/eClass classifications, delivering measurable cost savings over the lifecycle of automation cabinets.
