ABB EL1811K Enclosure Kit - CE/REACH/RoHS Compliance
Part Number: EL1811K
Quick Summary
ABB EL1811K Enclosure Kit is a modular side-panel solution for control cabinets in industrial automation. Engineers often struggle with mismatched panels that slow assembly and extend downtime, especially when mounting exact-width enclosures. This kit delivers pre-assembled side panels and mounting versatility while supporting EU regulatory requirements. It aligns with CE declarations and environmental standards (RoHS and REACH) and is documented in the IS2 Enclosures Technical Catalogue 2024. By combining a durable pickled steel panel with an orange peel finish in RAL 7035 and clear mounting options, it accelerates procurement, reduces field rework, and improves serviceability for OEMs and integrators.
Product Information
Extended Description

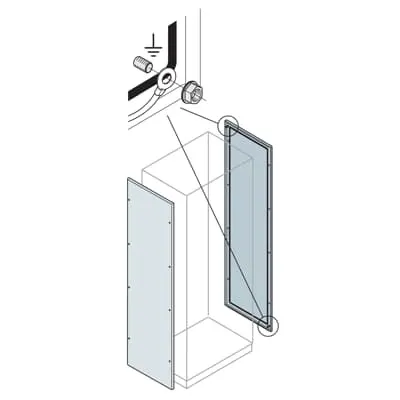

EL1811K ABB: Blind side panel 1800x1000 (hxw)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 1 blind side panel
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
994 mm
Product Net Height
1796 mm
Product Net Depth / Length
8 mm
Product Net Weight
23.120 kg
Reference Depth/Length
1000 mm
Reference Height
1800 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
23.590 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Pre-assembled side-panel mounting reduces installation time and field alignment checks, delivering tangible time-to-production gains and lower commissioning risk on new control cabinets. The pickled steel sheet with orange-peel RAL 7035 finish provides consistent aesthetics and a protective surface that withstands factory environments, lowering maintenance costs and resale concerns. Wide compatibility with reference widths from 400 to 1200 mm and a tall 1800 mm reference height enables modular IS2 enclosure configurations, supporting multiple line and machine formats without custom fabrication. The kit’s mounting versatility (Kit | Pre assembled) simplifies on-site routing, panel replacement, and future expansions, boosting uptime and inventory efficiency. Environmental and regulatory compliance (CE, RoHS, REACH) reduces risk of non-conformant installs and accelerates approval cycles for EU deployments. Documentation and standards alignment (IS2 Catalogue 2024, ETIM EC002524) provide procurement confidence and streamlined maintenance.
Get a Quick Quote for a ABB EL1811K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL1811K?
Enquire Now
FAQs
Yes, the EL1811K is designed for IS2 enclosure systems and offers both kit and pre-assembled mounting options. This dual approach accelerates on-site installation, reduces precision alignment requirements, and supports quick panel swaps during maintenance or expansion projects, ensuring consistent fit within standard IS2 enclosure footprints.
Key specs include net width 994 mm, net height 1796 mm, and net depth 8 mm, with a weight of 23.120 kg. The panels are made from pickled steel sheet with an orange-peel surface finishing in RAL 7035, providing durable protection and a standardized appearance for control cabinets.
Yes. The product supports reference widths of 400, 600, 800, 1000, and 1200 mm and a reference height of 1800 mm, making it suitable for a range of control cabinet configurations. This flexibility helps integrators standardize panels across multiple machines and lines.
EL1811K includes CE declaration of conformity, RoHS information with a 2025-01-08 date, and REACH declaration with 20250108 data. WEEE classification notes indicate the product is not in WEEE scope. This combination supports EU-market deployment and ongoing regulatory compliance.
Procurement and maintenance benefit from the IS2 Enclosures Technical Catalogue 2024 reference, declaration of conformity, and installation guidance 1STM604121R0006. ETIM classification EC002524 applies to side/back panels, aiding catalog searches, parts replacement, and long-term service planning.
