ABB EL1841K Control and Automation Board - CE IS2
Part Number: EL1841K
Quick Summary
ABB EL1841K control and automation board is designed for enclosure integration in industrial automation systems, delivering a robust and standardized mounting solution. Engineers frequently confront modular panels that don’t align with preassembled kits, forcing field modifications and costly delays. This kit carries a CE Declaration of Conformity, RoHS and REACH compliance, and ETIM/eClass classifications to simplify procurement and regulatory alignment. By offering a preassembled mounting kit with a durable pickled steel body and RAL 7035 orange peel finish, it enables faster installation, consistent performance, and scalable suitability for IS2 enclosures across multiple widths, while supporting long-term maintenance and supply chain efficiency.
Product Information
Extended Description

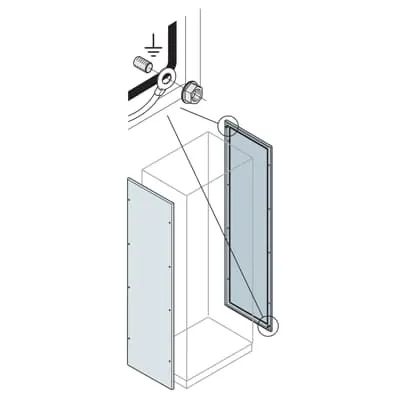

EL1841K ABB: Blind side panel 1800x400 (hxw)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 1 blind side panel
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
394 mm
Product Net Height
1796 mm
Product Net Depth / Length
8 mm
Product Net Weight
9.120 kg
Reference Depth/Length
400 mm
Reference Height
1800 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
9.310 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature: Side panel kit with preassembled mounting options. Benefit: Reduces on-site assembly time and eliminates guesswork during cabinet integration, cutting project timelines and labor costs. Application: Ideal for ABB IS2 enclosure families needing quick, reliable side/back panel solutions. Feature: Durable pickled steel sheet material with orange peel finish in RAL 7035. Benefit: Enhanced corrosion resistance and uniform aesthetics in harsh industrial environments, lowering repaint and maintenance needs. Application: Suitable for factory floors, switchgear rooms, and automated lines. Feature: Precise dimensions and multiple reference widths (400–1200 mm). Benefit: Improves fitment across diverse cabinet widths, minimizing modification work and inventory complexity. Application: Flexible to standardize enclosures in multi-line facilities. Feature: RoHS/REACH compliance and CE conformity. Benefit: Regulatory peace of mind and reduced supplier risk, supporting global manufacturing. Application: Compliance-critical deployments in regulated markets. Feature: Preassembled kit vs field assembly. Benefit: Faster commissioning and reduced risk of misalignment, enabling smoother handover to operations. Application: Cost-conscious projects needing predictable installation schedules. Feature: ETIM and eClass classifications. Benefit: Streamlined procurement, accurate cataloging, and easier e-commerce integration. Application: B2B purchasing workflows and ERP alignment for industrial buyers.
Get a Quick Quote for a ABB EL1841K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL1841K?
Enquire Now
FAQs
The EL1841K is designed as a preassembled mounting kit for ABB IS2 enclosure systems. Start by aligning the side panel with the enclosure framework, insert the predrilled fasteners, and secure using the included mounting hardware as specified in 1STM604121R0006. The preassembled design minimizes field assembly time and reduces adjustment errors during installation.
Key dimensions include a product net width of 394 mm, net height of 1796 mm, and net depth of 8 mm, with a reference width range of 400 to 1200 mm. The product net weight is 9.120 kg, and package level weight is 9.310 kg. This data helps ensure correct fitment within IS2 enclosures and supports precise material planning.
Yes. The EL1841K supports reference widths of 400 mm, 600 mm, 800 mm, 1000 mm, and 1200 mm, enabling standardized side-panel solutions across a family of IS2 enclosures. This flexibility reduces SKU proliferation and simplifies inventory management in multi-width cabinet lines.
The EL1841K features a CE Declaration of Conformity (IS2), RoHS information with a RoHS date of 20250108, and a REACH declaration with REACH date 20250108. It is also aligned with ETIM EC002524 and eClass 27182101 classifications, supporting regulatory compliance and reliable procurement in global manufacturing.
The EL1841K offers faster installation due to its preassembled mounting kit, reducing on-site labor and commissioning time. Its durable finish and compliant materials lower repainting and regulatory risk, while standardized dimensions simplify stocking and forecasting. Over multiple projects, this translates to lower total cost of ownership and a more predictable maintenance cycle.
