ABB EL1860K Side Panels for Enclosures - CE Conformity
Part Number: EL1860K
Quick Summary
ABB EL1860K side panels are pre-assembled enclosure panels designed for 1800x600 mm control cabinets. This reduces on-site assembly time and misalignment risks, delivering faster project completion and lower labor costs. Built to meet CE conformity with RoHS and REACH declarations, these panels support regulatory compliance alongside durable, long-lasting performance. The finish, a textured orange-peel with RAL 7035 light grey, delivers professional aesthetics and consistent color matching across installations. Compatible with standard modular enclosures and ETIM 8/9 specifications, the EL1860K aligns with ABB IS2 catalogues while offering practical weight and packaging for shipping. In short, it contributes to safer, neater enclosures and faster project turnarounds while maintaining quality and traceability.
Product Information
Extended Description

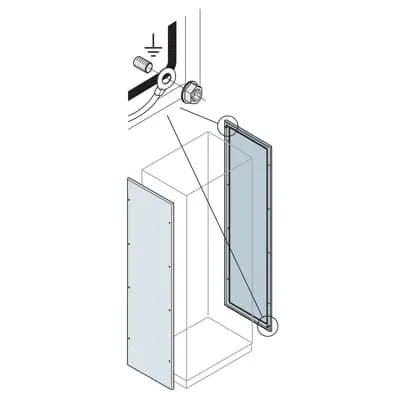

EL1860K ABB: Pair of blind side panels 1800x600mm (HxW)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 2 blind side panles
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
1796 mm
Product Net Depth / Length
16 mm
Product Net Weight
27.580 kg
Reference Depth/Length
600 mm
Reference Height
1800 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
28.140 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
ABB EL1860K side panels arrive as a complete pre-assembled kit for control cabinets. This reduces on-site assembly time and misalignment risks, delivering faster project completion and lower labor costs. The kit is designed for 1800 mm tall, 600 mm wide references, underpinning reliable, repeatable installations in panel houses and automation racks. With a durable pickled steel sheet and orange-peel finish in RAL 7035 light grey, the panels resist wear in busy control rooms while maintaining a professional look. The 594 mm net width and 1796 mm net height match standard enclosure footprints, allowing clean cable routing and consistent panel-to-frame clearance, which yields predictable fit and reduces field trimming. Mounting is straightforward: kit-ready, pre-assembled side panels plug into standard frames with minimal alignment steps. They support reference widths from 400 to 1200 mm and a reference height of 1800 mm, ensuring compatibility with ABB IS2 enclosures and modular systems. Compliance is built in with RoHS and REACH declarations, plus a CE Declaration of Conformity. The documentation includes IS2 Enclosures Technical Catalogue 2024 and the installation manual 1STM604121R0006, supporting procurement and project planning.
Get a Quick Quote for a ABB EL1860K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL1860K?
Enquire Now
FAQs
The EL1860K kit is designed for 1800 mm tall, 600 mm wide reference enclosures, with a product net width of 594 mm and net height of 1796 mm. It supports reference widths from 400 to 1200 mm, making it compatible with a wide range of ABB IS2 and modular enclosure configurations for consistent fit and finish.
The panels include a CE Declaration of Conformity, RoHS information and declaration, and a REACH declaration with a 20250108 RoHS/REACH date. They are categorized as WEEE non-scope in manufacturing data, supporting regulatory compliance and responsible lifecycle management.
Installation uses a kit-based, pre-assembled mounting approach, designed to drop into standard enclosure frames with minimal alignment. This reduces field adjustments and speeds up commissioning. Their mounting type supports rapid integration with modular ABB enclosures and standard frame rails, improving project throughput.
Yes. The panels are classified under ETIM 8 EC002524 for side-/back panels and ETIM 9 equivalents, and eClass 27182101, ensuring data interoperability for procurement systems, BOM generation, and cross‑system cataloging.
The key ROI comes from reduced installation time, consistent aesthetics, and regulatory compliance. The pre-assembled kit minimizes field labor, while RoHS/REACH/CE alignment lowers risk and change orders. With predictable weight and packaging, shipping and handling costs are optimized, supporting faster project turnover and long-term enclosure reliability.
