ABB EL1880K Side Panels for Enclosures - CE Certified
Part Number: EL1880K
Quick Summary
ABB EL1880K Side Panels for control enclosures provide a ready-made, pre-assembled solution to shield components in industrial cabinets. Many projects suffer from misalignment and on-site delays when panels are not pre-assembled or correctly sized. It carries CE conformity, RoHS compliance, and REACH information, helping meet European regulatory requirements. As a pre-assembled option, it integrates with IS2 enclosures and supports fast commissioning, reducing installation risk and total cost of ownership. This approach also simplifies spare part planning and enables scalable cabinet configurations across multiple production lines. The orange peel finish in RAL 7035 ensures long-term corrosion resistance in harsh environments. Engineers benefit from consistent fit and durable finish.
Product Information
Extended Description

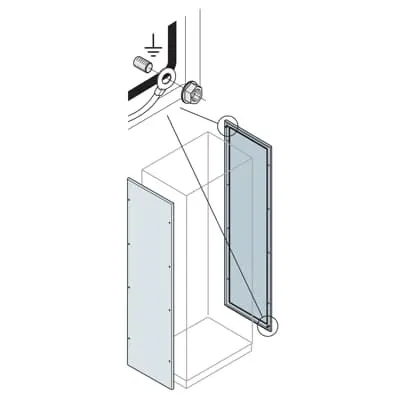

EL1880K ABB: Pair of blind side panels 1800x800mm (HxW)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 2 blind side panles
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
1796 mm
Product Net Depth / Length
16 mm
Product Net Weight
36.910 kg
Reference Depth/Length
800 mm
Reference Height
1800 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
37.660 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The EL1880K is a pre-assembled side panel kit designed to fit ABB IS2 enclosure footprints, reducing field labor and on-site testing time. Business impact: faster commissioning, lower installation risk, and streamlined maintenance planning. Application: ideal for modular control cabinets across assembly lines, where repeatable fit accelerates changeovers and minimizes downtime. Feature → Business Impact → Application: Material is pickled steel with an orange peel finish in RAL 7035, delivering robust corrosion resistance and a uniform appearance. Business impact: longer service life and reduced repainting costs in harsh environments. Application: suitable for factory floors, wash-down zones, and outdoor-rated control cabinets. Feature → Business Impact → Application: Mounting Type Kit | Pre assembled enables flexible installation and easy retrofits. Business impact: on-site adjustments without special tooling and compatible with existing mounting rails. Application: retrofit projects or expandable systems in evolving production lines. Feature → Business Impact → Application: Reference dimensions include height 1800 mm and widths 400–1200 mm, plus 16 mm net depth. Business impact: supports standardization across multiple cabinet widths, simplifies procurement, and minimizes custom fabrication. Application: scalable enclosure strategies for multi-line installations. Feature → Business Impact → Application: Compliance and documentation (RoHS, REACH, ETIM EC002524) provide regulatory assurance. Business impact: reduces risk of non-compliance audits and accelerates ERP/PLM data import. Application: European manufacturing environments with strict environmental and data standards.
Get a Quick Quote for a ABB EL1880K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL1880K?
Enquire Now
FAQs
EL1880K panels come as a kit with pre-assembled side panels designed for ABB IS2 enclosures. They support mounting as a kit or pre-assembled unit, reducing on-site alignment issues. When planning installation, verify reference dimensions (1800 mm height, 400–1200 mm width) and order matching widths to avoid field trimming. The included mounting hardware and 16 mm depth ensure quick, accurate fit with minimal commissioning time.
Yes. The EL1880K side panels include RoHS information dated 20250108 and a REACH declaration dated 20250108. REACH information states no substances above 0.1 mass percent, supporting European regulatory compliance. This reduces audit risk and facilitates supplier qualification in regulated markets.
The EL1880K is designed for reference widths of 400 mm, 600 mm, 800 mm, 1000 mm, and 1200 mm, with a product net width of 794 mm. This enables flexible integration into a range of cabinet configurations and supports scalable system architecture across multiple lines.
Because the panels ship as a pre-assembled kit, they minimize on-site fabrication and alignment tasks, expediting commissioning. The orange peel finish in RAL 7035 provides durable corrosion resistance, reducing repainting and upkeep. Compatibility with IS2 enclosures also simplifies spare parts planning and future upgrades, lowering total cost of ownership over the cabinet’s lifecycle.
Documentation includes CE Declaration of Conformity, RoHS and REACH information with dates, ETIM EC002524 classification for side-/back panels, eClass V11.1 27182101, and the IS2 Enclosures Technical Catalogue 2024. The installation reference 1STM604121R0006 and the WEEE category note (Product Not in WEEE Scope) support compliant procurement and lifecycle planning.
