ABB EL2050K Side Panels - ETIM EC002524 for IS2 Enclosures
Part Number: EL2050K
Quick Summary
ABB EL2050K side panels provide pre-assembled enclosure protection for IS2 enclosures and control cabinets. The kit minimizes misalignment and procurement delays by delivering a complete, compatible solution that’s ready for fast installation. Key certifications include CE conformity (IS2 Declaration), RoHS compliance, and REACH information to support regulatory approvals. The orange-peel finish in RAL 7035 delivers durable aesthetics and corrosion resistance, while the kit-friendly design reduces maintenance complexity and stock diversity—improving project timelines and total cost of ownership for industrial enclosure projects. Designed for modular widths and common industrial controls, these panels complement ABB accessories and IS2 catalogue standards, helping engineers specify reliable enclosure components with confidence.
Product Information
Extended Description

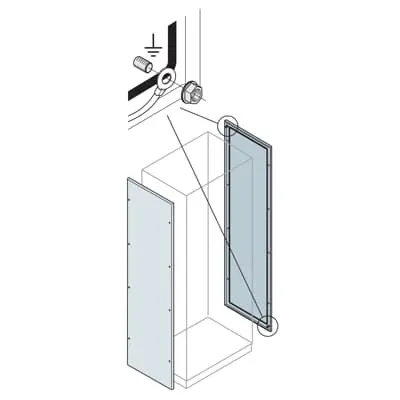

EL2050K ABB: Pair of blind side panels 2000x500mm (HxW)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 2 blind side panles
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
494 mm
Product Net Height
1996 mm
Product Net Depth / Length
16 mm
Product Net Weight
25.460 kg
Reference Depth/Length
500 mm
Reference Height
2000 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
25.980 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit for quick installation. Business Impact: Reduces field assembly time and potential misalignment, speeding project delivery. Application: Retrofit or new-build control cabinets where installation speed matters. Feature: Surface finishing in orange peel, RAL 7035. Business Impact: Maintains a durable, consistent appearance with corrosion resistance in harsh environments. Application: Industrial enclosures requiring long-term aesthetics and protection. Feature: Material is pickled steel sheet. Business Impact: Delivers robust structural protection at a favorable total cost of ownership. Application: Harsh manufacturing floors and electrical rooms demanding reliable enclosure components. Feature: Dimensions defined for IS2 compatibility—height 2000 mm, depth 500 mm, net width 494 mm; Reference Width options 400/600/800/1000/1200 mm. Business Impact: Provides flexible fit across a range of enclosure widths without custom fabrication. Application: Modular enclosures and expansion projects needing standardized side panels. Feature: Compliance and data integrity—RoHS, REACH, CE declarations and ETIM EC002524. Business Impact: Simplifies regulatory approvals and data-driven procurement. Application: Industries with strict material and data requirements, including automation and process environments. Feature: Packaging and weight — 1 piece per package, net weight 25.460 kg; gross weight 25.980 kg. Business Impact: Predictable shipping, easier handling, and reduced packaging waste. Application: Global distribution and procurement planning for enclosure components.
Get a Quick Quote for a ABB EL2050K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL2050K?
Enquire Now
FAQs
Check mounting type (kit | pre-assembled) and match the product’s height and depth to your IS2 enclosure. The EL2050K is designed as a pre-assembled side panel kit for IS2 systems, with a net width of 494 mm and reference widths from 400 to 1200 mm. Ensure your enclosure width aligns with the IS2 catalogue recommendations to avoid field customization.
Key specs include a pair of blind side panels sized for 2000 mm height and 500 mm depth, net width 494 mm, material as pickled steel sheet, orange peel surface in RAL 7035, and mounting as a kit or pre-assembled. The product is classified under ETIM EC002524 and supports CE conformity with IS2 declarations.
Yes. The EL2050K carries CE conformity with the IS2 Declaration of Conformity, along with RoHS information and REACH declarations. REACH information confirms no substances above 0.1 mass percent, and a REACH date is provided for traceability, supporting regulatory compliance across manufacturing and automation environments.
They are designed for IS2 enclosure systems and control cabinets, suitable for modular widths 400–1200 mm with a 2000 mm tall, 500 mm deep footprint. The orange peel finish in RAL 7035 provides durable aesthetics, while the kit design accelerates installation in retrofit projects and new builds in automation and electrical environments.
The product ships as a single piece per package with a net weight of 25.460 kg and a package gross weight of 25.980 kg. This packaging and weight profile simplifies logistics and procurement planning, especially for distributors and large-scale automation projects.
