ABB EL2060K Side Panels - CE Declaration of Conformity
Part Number: EL2060K
Quick Summary
EL2060K Side Panels from ABB provide fast, pre-assembled enclosure protection for 2000x600 mm control cabinets. Many projects struggle with misfit panels and lengthy field assembly, which delays commissioning and increases labor costs. These panels are CE marked with the official Declaration of Conformity and meet RoHS and REACH requirements, helping you stay compliant and audit-ready. The rugged pickled steel with orange peel finish in RAL 7035 offers durable protection in harsh environments, while ETIM classification and IS2 catalogue references streamline procurement, warranty support, and field maintenance. For project teams, this translates to consistent installations, reduced on-site risk, and smoother maintenance workflows across multiple assemblies.
Product Information
Extended Description

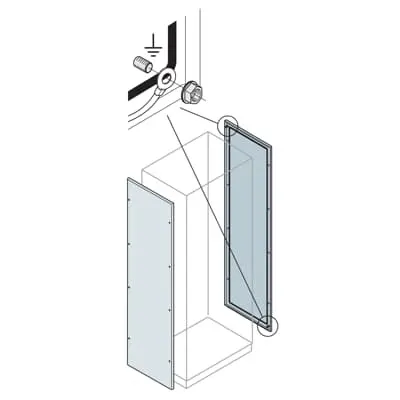

EL2060K ABB: Pair of blind side panels 2000x600mm (HxW)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 2 blind side panles
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
1996 mm
Product Net Depth / Length
16 mm
Product Net Weight
30.640 kg
Reference Depth/Length
600 mm
Reference Height
2000 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
31.270 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature: Ready-to-fit kit with two blind side panels and mounting kit. Business Impact: Speeds installation and reduces field-fit risk, cutting commissioning time. Application: Ideal for 2000x600 mm control cabinets in automated lines and switchgear housings. Feature: Material and finish - pickled steel sheet with orange peel surface, RAL 7035. Business Impact: Delivers durable weather- and corrosion-resistance while maintaining a consistent appearance in active production environments. Application: Enclosures exposed to typical factory atmospheres benefit from a lasting, uniform look. Feature: Precise dimensions and weight - product net width 594 mm, height 1996 mm, net depth 16 mm; weight 30.640 kg (package 31.270 kg). Business Impact: Ensures predictable fit with standard mounting rails and frame tolerances, reduces trimming work, and simplifies spare-part planning. Application: Suitable for standardized cabinet footprints with multiple width options. Feature: Compliance and standards - CE Declaration, RoHS information, REACH declaration, WEEE category noted. Business Impact: Improves regulatory readiness and procurement traceability, lowering audit risk and long-term compliance costs. Application: Regulatory-conscious deployments across automotive, packaging, and process industries. Feature: ETIM/eClass classifications and IS2 catalogue alignment - ETIM 8/9 EC002524; eClass V11.1 27182101. Business Impact: Streamlines sourcing, improves data consistency in ERP, and enhances cross-system compatibility. Application: Enterprise-scale projects with BOM synchronization and supplier data feeds.
Get a Quick Quote for a ABB EL2060K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL2060K?
Enquire Now
FAQs
EL2060K side panels are supplied as a pre-assembled kit designed to fit 2000 mm tall by 600 mm wide control cabinets. The kit includes two blind side panels and mounting hardware for straightforward alignment with standard enclosure frames. This reduces on-site adjustments and ensures consistent gaps, aiding quick commissioning in automation projects.
The EL2060K panels use pickled steel sheet with an orange peel finish in RAL 7035. They measure 594 mm net width by 1996 mm net height, with a net depth of 16 mm. Each unit weighs around 30.640 kg (packaged 31.270 kg). The panels are supplied as a kit with two panels and are compatible with 400–1200 mm reference width options.
Yes. The EL2060K panels carry CE Declaration of Conformity, and are RoHS and REACH compliant, with documentation such as RoHS dates and REACH information available. WEEE category notes indicate compliance expectations. This helps support regulatory approvals, audits, and sustainability reporting in industries like automotive, packaging, and process control.
Material is pickled steel with an orange peel surface finished in RAL 7035 for color consistency and protection. Environmental information references IS2 Enclosures Technical Catalogue 2024. The panels also align with ETIM classifications (EC002524) for side-/back-panel data, and with eClass code V11.1 27182101, aiding accurate data exchange across procurement systems.
Using the EL2060K panels reduces field installation time, minimizes misfit issues, and improves consistency across multiple enclosures. The robust finish and compliant materials lower maintenance costs and extend service intervals. With standardized dimensions and ETIM/eClass data, procurement is streamlined, reducing downtime and accelerating project ROI in automation builds.
