ABB EL2061K Control and Automation Board - CE/ETIM EC002524
Part Number: EL2061K
Quick Summary
ABB EL2061K is a side panel kit for IS2 enclosures that provides a 2000x600 blind panel. This solution addresses the common challenge of matching enclosure sides to evolving control architectures while maintaining quick field deployment. The product carries CE conformity with the IS2 Declaration of Conformity, and it aligns with ETIM EC002524 and eClass 27182101 for streamlined procurement and asset tagging. RoHS and REACH compliance are documented with current dates, supporting regulatory reporting and sustainability goals. By offering a pre-assembled option or a kit, the EL2061K reduces on-site assembly time, improves protection against contaminants, and supports scalable enclosure configurations for growing automation projects.
Product Information
Extended Description

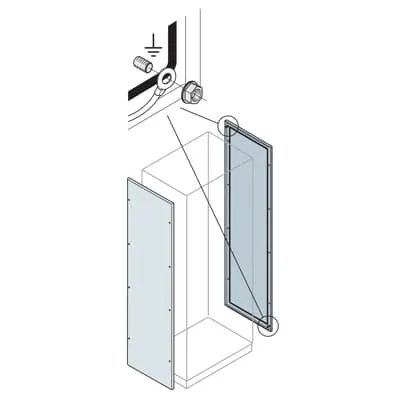

EL2061K ABB: Blind side panel 2000x600 (hxw)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 1 blind side panel
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
1996 mm
Product Net Depth / Length
8 mm
Product Net Weight
15.320 kg
Reference Depth/Length
600 mm
Reference Height
2000 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
15.630 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
The EL2061K side panel kit provides a precise 2000x600 blind panel for IS2 enclosures, which standardizes enclosure geometry and reduces field trimming and rework while accelerating installation in control cabinets. The pickled steel sheet material delivers reliable mechanical strength and corrosion resistance, and the orange peel finish in RAL 7035 enhances durability and aesthetics in harsh industrial environments, improving long-term enclosure integrity. Mounting flexibility is a key benefit, with options for a kit or pre-assembled configuration that supports fast commissioning or on-site customization, reducing lead times and labor costs. Compliance features include RoHS information, REACH declarations (with dates), and a CE Declaration of Conformity, which simplify regulatory reporting and supplier data integration. The component’s ETIM EC002524 and eClass 27182101 classifications support seamless integration with ERP and procurement systems, delivering improved supply-chain traceability and lower total cost of ownership.
Get a Quick Quote for a ABB EL2061K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL2061K?
Enquire Now
FAQs
EL2061K is designed as a side panel kit for IS2 enclosures with mounting options including a kit or pre-assembled configuration. This provides flexibility for quick deployments or on-site customization, reducing installation time and enabling scalable enclosure configurations in automation projects.
The side panel kit targets a 2000x600 blind panel on IS2 enclosures, with a net width of 594 mm, net height of 1996 mm, and net depth of 8 mm. Product net weight is 15.320 kg, while packaged weight is 15.630 kg in a single-piece package.
Yes. The EL2061K includes RoHS information with a date of 20250108, a REACH declaration with a 20250108 date, and CE conformity via the IS2 Declaration of Conformity. It is also classified under ETIM EC002524 and eClass 27182101 for procurement and data-management alignment.
Yes. The EL2061K offers mounting type options of Kit or Pre assembled, giving you the flexibility to choose fast on-site deployment with a pre-assembled panel or maximum customization with a kit.
Best-suited for control cabinets and automation enclosures in manufacturing and process industries, the EL2061K provides robust protection with an orange peel finish (RAL 7035), RoHS/REACH compliance, and ETIM/eClass classifications that streamline procurement and asset tagging for ongoing maintenance and scalability.
