ABB EL2080K Side Panels - RAL 7035 Light Grey
Part Number: EL2080K
Quick Summary
ABB EL2080K Side Panels provide enclosure-side protection for control and automation boards in industrial cabinets. In busy plant environments, misaligned or slow-install side panels can cause downtime and maintenance headaches. This product features CE conformity with Declaration of Conformity IS2, RoHS compliance dated 20250108, and REACH declarations, ensuring regulatory alignment. Built for modular ABB IS2 enclosures, the orange-peel finish in RAL 7035 delivers durable aesthetics and corrosion resistance, while the preassembled kit and mounting options accelerate deployment. For procurement teams, the robust 794 mm net width with flexible up-to-2000 mm height compatibility translates into fewer custom parts and streamlined stock management, supporting scalable, compliant, and cost-effective cabinet assemblies.
Product Information
Extended Description

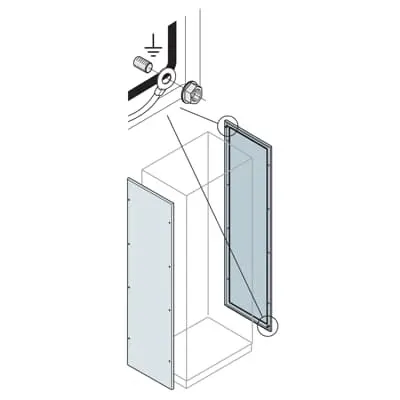

EL2080K ABB: Pair of blind side panels 2000x800mm (HxW)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 2 blind side panles
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
1996 mm
Product Net Depth / Length
16 mm
Product Net Weight
41.010 kg
Reference Depth/Length
800 mm
Reference Height
2000 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
41.850 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature: Side panels kit with preassembled mounting options → Business Impact → Application: Accelerates installation, reduces field assembly errors, and minimizes equipment downtime in ABB IS2 enclosures. This enables faster project turnover and lower labor costs in industrial cabinet builds. Feature: Pickled steel sheet with orange-peel finish in RAL 7035 → Business Impact → Application: Delivers corrosion resistance and a clean, standardized appearance across modular control cabinets, improving long-term reliability in harsh environments. Feature: Surface finishing and material compliance (RoHS, REACH) → Business Impact → Application: Ensures regulatory alignment and easier supplier audits, lowering risk for aerospace, automotive, and process industries. Feature: Mounting Type Kit | Pre assembled → Business Impact → Application: Flexible deployment for retrofit or new builds, enabling on-site customization without specialized tools. Feature: Reference width range 400–1200 mm and reference height 2000 mm → Business Impact → Application: Broad compatibility with multiple enclosure sizes reduces SKU complexity and stockholding costs. Feature: Includes No. 2 blind side panels → Business Impact → Application: Complete enclosure assemblies out-of-the-box, minimizing additional purchases and improving project scheduling.
Get a Quick Quote for a ABB EL2080K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL2080K?
Enquire Now
FAQs
The EL2080K Side Panels are designed for ABB IS2 enclosures, providing a two-panel, preassembled mounting solution compatible with reference heights up to 2000 mm and widths within 400 to 1200 mm. This alignment simplifies retrofit projects and standardizes enclosure configurations across multiple machines.
Key specs include a net width of 794 mm, net height of 1996 mm, and net depth of 16 mm, with a finish of orange peel in RAL 7035 and a material of pickled steel sheet. The mounting type is kit or pre-assembled, and the product is paired with two blind side panels for complete enclosure coverage.
Yes, the panels use a durable orange-peel finish in RAL 7035 on pickled steel, offering corrosion resistance and robust protection in typical industrial environments. For extreme conditions, confirm your specific ambient ratings and cabinet sealing requirements during planning.
The panels include a Declaration of Conformity CE IS2, RoHS information with a 20250108 RoHS date, and a REACH declaration with a 20250108 REACH date, ensuring regulatory compliance and streamlined audits for global deployments.
The EL2080K panels reduce installation time through a preassembled kit, provide consistent aesthetics with RAL 7035 finish, ensure regulatory compliance (CE, RoHS, REACH), and offer broad width compatibility (400–1200 mm) with a 2000 mm height, delivering cost savings through fewer parts and faster project delivery.
