ABB EL2210K Other/Miscellaneous - CE IS2 Declaration
Part Number: EL2210K
Quick Summary
EL2210K control and automation side panels provide rugged enclosure protection for ABB control cabinets. Manufacturing projects often stall due to complex field installation and retrofit challenges; this kit simplifies mounting and future upgrades, reducing on-site labor and downtime. It carries CE conformity (Declaration of Conformity IS2), RoHS and REACH declarations to support regulatory compliance and product stewardship. ETIM EC002524 classification and IS2 enclosure documentation streamline cataloging, procurement, and project handover, delivering predictable installations and faster time-to-value for your automation initiatives.
Product Information
Extended Description

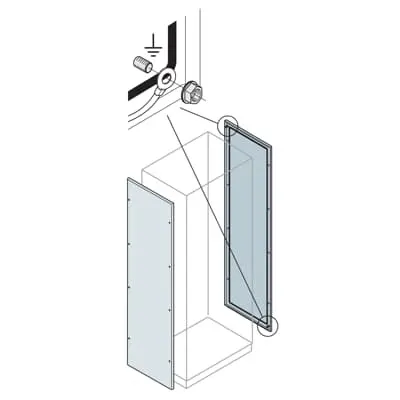

EL2210K ABB: Pair of blind side panels 2200x1000mm (HxW)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 2 blind side panles
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
994 mm
Product Net Height
2196 mm
Product Net Depth / Length
16 mm
Product Net Weight
56.520 kg
Reference Depth/Length
1000 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
57.670 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature: Side-panel kit with pre-assembled mounting options → Business Impact: Accelerates installation and reduces field labor, enabling tighter project schedules and lower total cost of ownership. Application: Suitable for ABB control cabinets in new builds and retrofits. Feature: Pickled steel sheet material with orange peel surface in RAL 7035 → Business Impact: Combines durability with consistent aesthetics, improving long-term enclosure integrity in demanding environments. Application: Industrial automation panels exposed to variable conditions. Feature: Precise dimensions and wide compatibility (Net width 994 mm, height 2196 mm, depth 16 mm; reference width 400–1200 mm) → Business Impact: Simplifies design-in and procurement, enabling rapid conforming to cabinet footprints. Application: Customizable width options for modular enclosures. Feature: 1 piece package with 2 blind side panels, mounting kit or pre-assembled → Business Impact: Minimizes field assembly risk and ensures reliable alignment, reducing commissioning delays. Application: Asset management and aftermarket service for control panels. Feature: Regulatory and documentation readiness (RoHS, REACH, WEEE, CE IS2) → Business Impact: Supports audits, compliance reporting, and sustainability goals. Application: Regulated industries and systems integrators seeking traceable materials and standards.
Get a Quick Quote for a ABB EL2210K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL2210K?
Enquire Now
FAQs
EL2210K is designed as a pre-assembled side-panel kit compatible with ABB control cabinets. It offers mounting kit options and aligns with reference widths from 400 mm to 1200 mm, ensuring straightforward integration with standard enclosure footprints and reducing field adjustments during installation.
Key specs include a net width of 994 mm, net height of 2196 mm, and net depth of 16 mm. Material is pickled steel with an orange-peel finish in RAL 7035. The kit includes two blind side panels and is offered in a pre-assembled mounting configuration for faster deployment.
Yes, the EL2210K supports IS2 enclosure systems and carries a CE Declaration of Conformity. It also adheres to RoHS and REACH requirements, with documentation indicating alignment to ETIM EC002524 for side-/back-panel classifications and WEEE scope considerations.
The pre-assembled mounting configuration and two blind side panels minimize on-site assembly and alignment challenges. With precise dimensions and a single-piece packaging approach, commissioning is faster, reducing labor costs and project risk while improving overall project timelines.
Procurement uses pickled steel sheet with an orange-peel finish in RAL 7035, delivering a durable, standardized appearance. The reference widths cover 400–1200 mm to fit various cabinet sizes, and the kit includes two blind side panels for ready-to-install compatibility within ABB control systems.
