ABB EL2240K Side Panels - CE Certified RAL 7035
Part Number: EL2240K
Quick Summary
EL2240K side panels are ABB enclosure components for control cabinets and IS2 enclosures. They address common installation challenges like misfit panels, inconsistent finishes, and on-site customization delays. The units are CE certified, RoHS compliant, and REACH declared, ensuring compliance with essential safety and environmental standards. Designed for compatibility with IS2 enclosures and available as a pre-assembled kit or as standalone panels, they enable faster deployment, reduced labor, and lower total cost of ownership for complex automation projects. This combination supports lean manufacturing while delivering reliable, durable enclosure upgrades.
Product Information
Extended Description

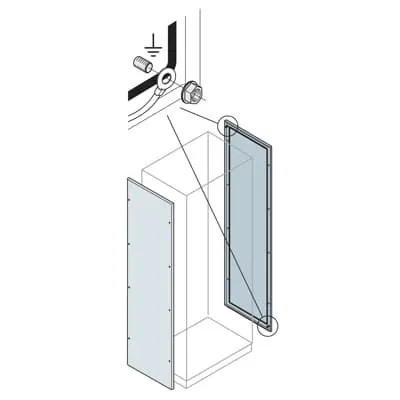

EL2240K ABB: Pair of blind side panels 2200x400mm (HxW)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 2 blind side panles
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
394 mm
Product Net Height
2196 mm
Product Net Depth / Length
16 mm
Product Net Weight
22.30 kg
Reference Depth/Length
400 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
22.760 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
The material is a pickled steel sheet finished with orange peel, RAL 7035 light grey, delivering durable corrosion resistance and a professional appearance that withstands tough industrial environments. This finish reduces maintenance cycles and keeps enclosures looking and performing consistently across facilities, supporting long service life with minimal repainting or touch-ups. The mounting type is kit or pre-assembled, which directly lowers installation time and labor costs while minimizing field errors during enclosure assembly. By providing a pre-assembled solution, installers benefit from plug-and-play compatibility with standard IS2 enclosure footprints, accelerating project timelines and enabling faster commissioning. The panels are dimensioned for a 400 mm reference width and 2200 mm reference height, ensuring a precise fit with common ABB system cabinets and reducing the need for on-site modification. With a net weight of 22.3 kg, the panels offer sturdy enclosure integrity without imposing excessive handling requirements. RoHS and REACH compliance, along with a clear ETIM/ETIM-EC classification, helps procurement teams meet regulatory and sourcing requirements while simplifying supplier audits. The product ships as a single unit per package, aligning with standard logistics and packaging processes and reducing excess shipping variance. In short, EL2240K side panels deliver installation efficiency, consistent quality, and regulatory alignment for IS2 enclosure upgrades.
Get a Quick Quote for a ABB EL2240K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL2240K?
Enquire Now
FAQs
EL2240K panels are offered as a pre-assembled kit or as individual side panels designed for 400 mm wide IS2 enclosures. Begin by aligning the panels with the mounting points on the enclosure frame, secure with the included hardware, and verify fitment against the reference height of 2200 mm. The kit option minimizes field assembly steps, reducing labor time and potential misalignment.
Key specs include a net width of 394 mm, net height of 2196 mm, net depth of 16 mm, weight around 22.3 kg, and a surface finish of orange peel in RAL 7035. Material is pickled steel sheet. They are designed as a kit or pre-assembled mounting option, with RoHS and REACH declarations and IS2 catalogue alignment.
Yes. The EL2240K panels carry RoHS information with a RoHS date of 20250108 and a REACH declaration confirming compliance. This helps ensure regulatory alignment for European installations and simplifies supplier audits for regulated environments.
The EL2240K panels are designed for ABB IS2 enclosure systems and match the 400 mm reference width. They function well as a replacement or upgrade for standard control cabinets and automation enclosures, offering a ready-to-install solution that reduces field work and ensures a consistent finish.
Choosing EL2240K panels reduces installation time thanks to pre-assembled options, lowers labor costs, and minimizes field errors due to precise fit with 400x2200 mm enclosure footprints. The durable RAL 7035 finish and RoHS/REACH compliance support long service life with less maintenance, improving total cost of ownership for automation projects.
