ABB EL2241K Control Board for Industrial CE Compliance
Part Number: EL2241K
Quick Summary
The ABB EL2241K is a control and automation board side panel designed for robust, large-scale enclosure applications. This solution addresses the common challenge of integrating pre-assembled panels into 400 mm reference width cabinets, reducing on-site assembly time. It carries CE compliance, RoHS information, and REACH declarations to support regulatory alignment and supplier risk management. The panel is referenced in the IS2 Enclosures Technical Catalogue 2024, with ETIM 8/9 classifications and an eClass code that reinforces compatibility with modern digital catalogs. By choosing this panel, engineers and purchasers gain predictable fit, consistent finish (RAL 7035 orange peel), and a documented path to compliance, supporting faster project timelines and lower total cost of ownership.
Product Information
Extended Description

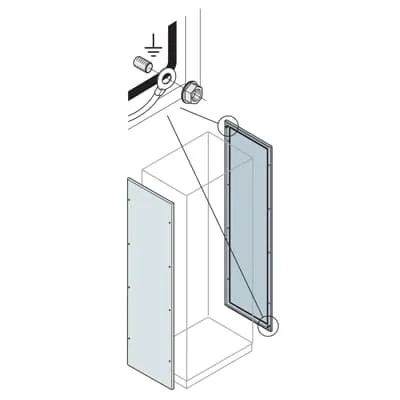

EL2241K ABB: Blind side panel 2200x400 (hxw)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 1 blind side panel
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
394 mm
Product Net Height
2196 mm
Product Net Depth / Length
8 mm
Product Net Weight
11.150 kg
Reference Depth/Length
400 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
11.380 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The EL2241K uses pickled steel sheet with an orange peel finish (RAL 7035), delivering durable protection against environmental exposure in industrial cabinet environments, reducing maintenance cycles and repainting costs. This translates to longer service intervals and lower lifecycle costs for control rooms and electrical rooms that demand high-visibility, long-lasting enclosures. Application-wise, the 394 mm net width and 2196 mm net height align with standard 400x2200 reference dimensions, enabling reliable, modular panel integration in mid-to-large control cabinets. Feature → Business Impact → Application: Pre-assembled mounting kit simplifies installation and reduces commissioning time, improving site productivity and reducing installation labor risk for PLCs, power distribution, and HMI panels. Feature → Business Impact → Application: RoHS information and REACH declarations provide regulatory assurance for global deployments, helping compliance teams document material safety and supply-chain responsibility while avoiding costly non-conformance delays. Feature → Business Impact → Application: ETIM 8/9 EC002524 classification and eClass V11.1 coding enable seamless cross-catalog searches and procurement workflows, cutting sourcing time and ensuring correct part matching across multiple supplier ecosystems. Feature → Business Impact → Application: The option for multiple reference widths (400/600/800/1000/1200 mm) supports scalable enclosure design, allowing engineers to adapt to evolving cabinet footprints without replacing the panel kit. Feature → Business Impact → Application: The combination of RoHS, REACH, and WEEE alignment (Product Not in WEEE Scope) helps sustainability teams meet corporate environmental goals and regulatory reporting while minimizing waste and disposal costs. Feature → Business Impact → Application: The orange peel surface finish and the included documentation (IS2 Enclosures Catalogue, Declarations of Conformity) streamline acceptance testing and quality audits, reducing non-conformance findings during ISO or customer inspections.
Get a Quick Quote for a ABB EL2241K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL2241K?
Enquire Now
FAQs
The EL2241K is designed as a blind side panel for IS2 enclosures with a reference width of 400 mm and a panel height of 2200 mm. The product net width is 394 mm and the net height is 2196 mm, with a reference depth of 400 mm, offering a modular fit for 400, 600, 800, 1000, and 1200 mm width options in configured cabinets.
The panel measures 394 mm in net width, 2196 mm in net height, and 8 mm in net depth. It weighs 11.150 kg and is packaged as a single-piece unit. The reference width is 400 mm, and the kit is available in a pre-assembled mounting configuration for rapid installation.
Yes. The product includes RoHS information with a RoHS date of 20250108 and a REACH declaration indicating compliance. The REACH information states no substances above 0.1 mass percentage, and a separate REACH date confirms ongoing regulatory tracking for supply chain transparency.
The side panel uses pickled steel sheet with an orange peel surface finish in RAL 7035 light grey. This durable coating provides corrosion resistance, easy cleaning, and consistent appearance, which is important for long-term enclosure aesthetics and protection in industrial environments.
Installation references include the IS2 Enclosures Technical Catalogue 2024 and the specified instruction manual 1STM604121R0006. The product also lists a Data Sheet in the catalogue and a Declaration of Conformity for CE, ensuring you have the correct procedures, safety notes, and regulatory compliance documentation available during installation and audits.
