ABB EL2261K Control and Automation Board - ETIM EC002524
Part Number: EL2261K
Quick Summary
ABB EL2261K control and automation board enables side-panel integration for IS2 enclosures in industrial control panels. Manufacturers often face mismatched mounting options and lengthy installation; this kit ships pre-assembled to cut commissioning time. It carries CE conformity, RoHS compliance dated 20250108, and REACH declarations, with ETIM 8/9 and WEEE alignment for procurement. The orange peel finish in RAL 7035 provides color consistency and corrosion protection, while the pickled steel construction supports durable installation across industrial environments. Together with the IS2 Enclosures Technical Catalogue 2024 and a pre-assembled mounting approach, this part reduces installation risk and supports scalable enclosure layouts.
Product Information
Extended Description

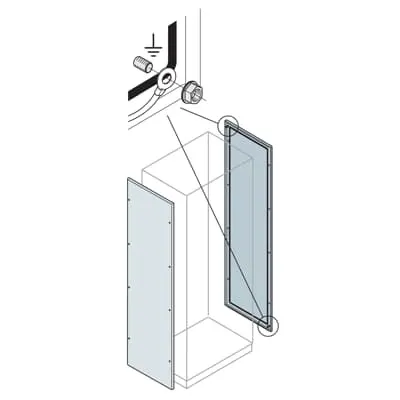

EL2261K ABB: Blind side panel 2200x600 (hxw)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 1 blind side panel
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
2196 mm
Product Net Depth / Length
8 mm
Product Net Weight
16.850 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
17.200 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: Side-panel kit with pre-assembled mounting reduces field labor and commissioning time, enabling faster project delivery and lower total cost of ownership in automation cabinets. The durable pickled steel sheet with orange-peel RAL 7035 finish delivers consistent aesthetics and weather-resistant protection in harsh environments, improving long-term reliability for control panels in manufacturing lines. The panel’s 594 mm net width plus reference widths of 600 mm and selectable 400–1200 mm variants ensures a precise fit across ABB IS2 enclosures, minimizing modification work and spare-part needs. RoHS, REACH, and CE declarations reduce regulatory risk and simplify supplier qualification for regulated industries. Documentation and manuals, including 1STM604121R0006 and the IS2 catalogue, streamline installation and maintenance, supporting faster onboarding for maintenance teams. The kit’s weight and packaging are optimized for standard shipping and handling, reducing logistics costs and downtime during upgrades.
Get a Quick Quote for a ABB EL2261K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL2261K?
Enquire Now
FAQs
EL2261K is shipped as a pre-assembled side-panel kit designed for ABB IS2 enclosures. To install, align the panel with the enclosure frame, secure using the provided fasteners, and follow the IS2 installation guidelines in the IS2 Enclosures Technical Catalogue. The panel supports a 594 mm net width and adjustable reference widths from 400 to 1200 mm, ensuring a precise fit across common IS2 sizes.
Key specifications include Product Net Width 594 mm, Product Net Height 2196 mm, Product Net Depth 8 mm, Reference Width 600 mm, Reference Height 2200 mm, Reference Depth/Length 600 mm, and Product Net Weight 16.850 kg. The package Level 1 Gross Weight is 17.200 kg, with a single-piece carton as the standard unit.
Yes. EL2261K is designed for IAS2 enclosures with flexible width compatibility. The Reference Width specifies 600 mm, while the enclosure system supports broader configurations from 400 mm to 1200 mm, ensuring a versatile fit for varied ABB IS2 enclosure programs.
EL2261K includes a CE Declaration of Conformity, RoHS information with a 20250108 RoHS date, and a REACH declaration with a 20250108 REACH date. WEEE categorization places the product as not in WEEE scope. The packaging and documentation also reference ETIM classifications EC002524 for side-/back panel compatibility.
The pre-assembled mounting kit reduces installation time and field labor, delivering a faster commissioning cycle and lower commissioning costs. The standardized RAL 7035 finish ensures consistent aesthetics across panels, simplifying future maintenance and replacements. Regulatory compliance ( CE, RoHS, REACH, WEEE) reduces procurement risk, supporting a clearer path to ROI in larger automation rollouts.
