ABB EL2280K Control and Automation Board - CE Declaration
Part Number: EL2280K
Quick Summary
ABB EL2280K control and automation board enables compact, robust electrical rooms for panel fabrication and machine integration in demanding industrial settings. Engineers often struggle with integrating pre-assembled mounting kits, side panels, and enclosure fit within restricted spaces, leading to delays and rework. This solution carries CE Declaration of Conformity, RoHS compliance, and REACH declarations, with ETIM classification to ensure interoperability across vendors. The product also adheres to IS2 enclosure standards and environmental guidelines, supporting sustainable, compliant operation. By combining clear installation paths with modular dimensions and finish options, ABB delivers faster deployments, reduced field adjustments, and predictable maintenance costs, delivering measurable business value for system integrators and manufacturers alike.
Product Information
Extended Description

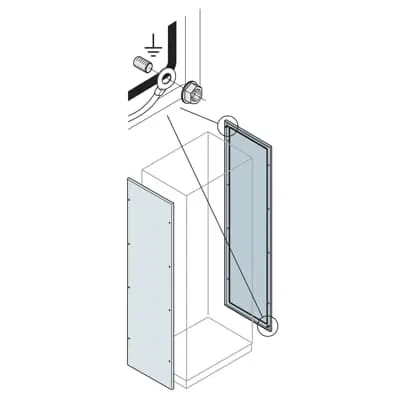

EL2280K ABB: Pair of blind side panels 2200x800mm (HxW)
Sub-Function 3
Side panel
Accessory Type
1. Side panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B250
Surface Finishing
Orange Peel, RAL 7035
Material
Pickled steel sheet
Options Provided
No. 2 blind side panles
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
2196 mm
Product Net Depth / Length
16 mm
Product Net Weight
45.110 kg
Reference Depth/Length
800 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
46.030 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
Standards
See code for structure
Feature Mounting flexibility Kit or Pre assembled improves installation efficiency by allowing on-site assembly or rapid pre-fit, reducing field labor and rework. Business Impact Faster deployment timelines and predictable project costs, especially for panel builders and machine integrators, with fewer customization requirements. Application Use in control cabinets and IS2 enclosure systems to streamline panel construction and commissioning. Feature Finishing and Material Orange Peel surface finish in RAL 7035 on pickled steel sheet delivers durable aesthetics and standardization across multiple panels. Business Impact Visual consistency, easier maintenance painting, and corrosion resistance in typical industrial environments. Application Enclosures subject to frequent access and routine cleaning, where uniform color and texture support quick identification. Feature Dimensions and Compatibility Product Net Width 794 mm, Product Net Height 2196 mm, Product Net Depth 16 mm, Reference Widths 400/600/800/1000/1200 mm. Business Impact Clear space planning, accurate fit within modular systems, and compatibility with a range of enclosure footprints. Application Suitable for modular panel systems and scalable control cabinets. Feature Compliance and Certification CE Declaration, RoHS Information, REACH Declaration, ETIM EC002524. Business Impact Regulatory compliance reduces risk, simplifies supplier audits, and supports sustainable procurement. Application Essential for automotive, food & beverage, and process automation environments with strict standards. Feature Packaging and Logistics One-piece package level, 46.030 kg total gross weight supports straightforward logistics and reduced handling risk. Business Impact Lower freight complexity and improved on-site unloading efficiency. Application For site installation teams prioritizing predictable delivery and minimal unpacking work.
Get a Quick Quote for a ABB EL2280K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EL2280K?
Enquire Now
FAQs
The EL2280K provides both Kit and Pre assembled mounting options, enabling on-site assembly where space or logistics dictate, or pre-fitted panels shipped ready for quick integration. This flexibility reduces field labor, speeds up commissioning, and minimizes on-site fabrication, which is especially valuable for tight schedules in panel builds and machine integration projects.
Yes. The product supports reference widths of 400, 600, 800, 1000, and 1200 mm and features a product net width of 794 mm with a reference height of 2200 mm. This enables easy pairing with a range of IS2 enclosure footprints and modular panel systems, reducing the need for custom fabrication.
The EL2280K is CE-declared for conformity, RoHS-compliant, and REACH-compliant, with ETIM classification EC002524. This helps ensure regulatory alignment across European markets, interoperability with compatible enclosure systems, and support for sustainable procurement.
The side panels use pickled steel sheet with an orange peel surface finish in RAL 7035 light grey. This combination provides durable protection, consistent appearance, and compatibility with standard enclosure coatings, while offering ease of cleaning and long-term maintenance in harsh industrial environments.
EL2280K speeds panel deployment, reduces on-site customization, and enhances regulatory compliance, leading to lower labor costs and shorter downtime during maintenance. Its modular width options and pre-assembled mounting capability simplify logistics, enabling scalable enclosures that adapt as process requirements evolve.
