ABB EM1600 Control and Automation Board - IS2 Enclosures
Part Number: EM1600
Quick Summary
ABB EM1600 Control and Automation Board is designed to house automation components in IS2-rated enclosure structures. In many plants, modularity gaps and installation complexity hinder quick panel deployment. This family delivers CE conformity, RoHS compliance, and REACH declarations, with ETIM 8 EC000386 and eClass 27400501 classification to simplify sourcing and cross-compatibility. By standardizing uprights at 1600 mm and offering multiple footprint options, engineers can reduce SKU proliferation and ensure consistent assembly across lines. The result is faster commissioning, lower field wiring risk, and a clearer roadmap for expansion—while maintaining regulatory compliance and long service life in industrial environments.
Product Information
Extended Description

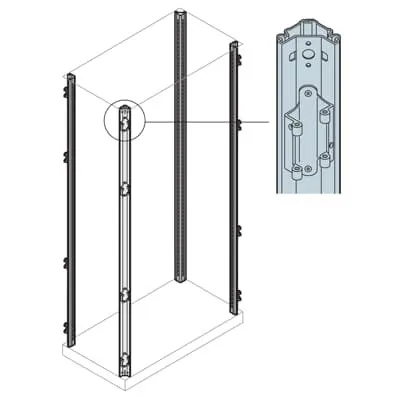

EM1600 ABB: N.4 Uprights H=1600mm
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Configuration Type
2. Uprights
Enclosure Type
Kit - uprights for standard structure
Mounting Type
Kit
Product Type
5B5B20B220
Material
Galvanized Steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
48 mm
Product Net Height
1500 mm
Product Net Depth / Length
48 mm
Product Net Weight
13.982 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1600 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
13.982 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0007
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000386 - Mounting rail/-profile
ETIM 9
EC000386 - Mounting rail/-profile
eClass
V11.1 : 27400501
Standards
See code for structure
Galvanized steel construction provides robust corrosion resistance and stable mechanical life, ensuring reliable operation in dusty, humid factory corners. This translates to reduced maintenance costs and minimized downtime when used to protect automation hardware. The EM1600 kit uses two uprights at 1600 mm height, enabling quick integration into existing line architectures and modular frame compatibility for scalable panels and multi-PLC setups. Footprint flexibility covers widths from 400 to 1200 mm and depths from 300 to 1000 mm, reducing SKU proliferation and simplifying inventory management while enabling fast configuration for control cabinets and automation racks. Compliance and traceability are built in with CE conformity, RoHS and REACH declarations, plus ETIM 8 EC000386 and eClass 27400501 classifications, helping procurement align with regulatory demands without sacrificing performance. Installation is supported by documented manuals (1STM604121R0007) and IS2 Enclosures Technical Catalogue 2024, minimizing mounting errors and accelerating commissioning with standard rails. The product weighs approximately 13.982 kg per package, a manageable load for on-site handling, which reduces labor time and improves overall project cost efficiency. This kit-ready approach delivers consistent quality across lines and supports smooth expansion as automation needs evolve.
Get a Quick Quote for a ABB EM1600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EM1600?
Enquire Now
FAQs
EM1600 is a modular IS2 enclosure kit designed for control and automation applications. It includes two uprights up to 1600 mm in height and a standardized mounting framework that supports widths from 400 to 1200 mm and depths from 300 to 1000 mm. The package is 1 piece per unit and comes with installation documentation (1STM604121R0007) for straightforward assembly.
The EM1600 kit is purpose-built to work with IS2 mounting rails and standard ABB automation components. Its uprights provide precise alignment for rails, panels, and modules, while the kit approach simplifies rail attachment and panel mounting. The ETIM and eClass classifications further aid in compatible part selection during procurement.
Yes. EM1600 is designed for control and automation boards within IS2 enclosures and supports typical manufacturing cabinet footprints. With configurable width and depth options, robust galvanized steel construction, and regulator-friendly documentation, it is well-suited for PLC cabinets, machine control panels, and automation racks in diverse industrial environments.
EM1600 carries CE conformity with a Declaration of Conformity IS2, RoHS compliance with a 20250108 date, and a REACH declaration noting no substances above 0.1 mass percentage. It also aligns with ETIM 8 EC000386 and eClass 27400501, supporting streamlined procurement and regulatory compliance.
Leverage the included installation manual 1STM604121R0007 and the IS2 Enclosures Technical Catalogue 2024 for step-by-step mounting, upright placement, and rail attachment. Regular checks should confirm upright alignment, door fitment, and cable routing within the footprint range. The galvanized steel construction minimizes corrosion, reducing maintenance costs over the cabinet’s life.
