ABB EM1801 Control and Automation Board - CE IS2 Kit
Part Number: EM1801
Quick Summary
ABB EM1801 is a control and automation board designed for compact panel installations in industrial environments. Engineers often struggle with integrating sturdy intermediate uprights and cable management in constrained spaces. This assembly carries a CE Declaration of Conformity, RoHS information with a 20250108 date, and a REACH declaration to support European compliance. Combined with a galvanized steel enclosure and modular mounting kit, it delivers reliable performance, easy installation, and scalable future upgrades.
Product Information
Extended Description

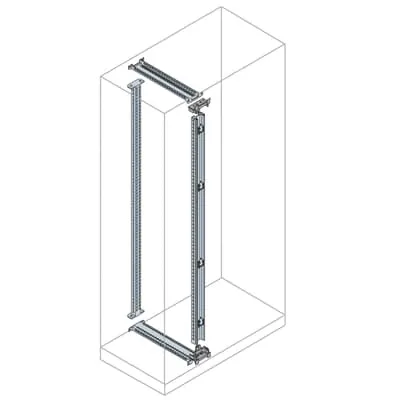

EM1801 ABB: Intermediate upright for structure W=1200/1600mm H=1800mm
Configuration Type
2. Uprights
Enclosure Type
Kit - Intermediate upright for cable container or double door
Mounting Type
Kit
Product Type
5B5B20B220
Material
Galvanized Steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
100 mm
Product Net Height
1692 mm
Product Net Depth / Length
46.9 mm
Product Net Weight
7.790 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
200 mm | 300 mm | 400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
7.950 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000386 - Mounting rail/-profile
ETIM 9
EC000386 - Mounting rail/-profile
eClass
V11.1 : 27400501
Object Classification Code
U
Standards
See code for structure
The intermediate upright kit is designed to simplify enclosure construction, delivering improved rigidity and cleaner cable routing for ABB IS2 enclosures. The galvanized steel sheet construction provides corrosion resistance and durability in harsh industrial environments, reducing maintenance cycles and total cost of ownership. With configurable reference heights and widths, EM1801 supports varied panel sizes, enabling faster machine builds and easier expansion without custom fabrication. Compliance elements such as RoHS and REACH declarations minimize regulatory risk for European manufacturing, while the CE conformity streamlines site approvals and commissioning. Documentation, including the IS2 Enclosures Technical Catalogue 2024 and installation instructions, supports fast onboarding and technician confidence. A compact weight and packaging profile (7.95 kg gross) aid logistics and field installations, improving crane or lift efficiency during panel assembly.
Get a Quick Quote for a ABB EM1801
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EM1801?
Enquire Now
FAQs
EM1801 is an intermediate upright kit designed to pair with ABB IS2 enclosure systems, supporting cable containers or double-door configurations. The mounting kit uses standard uprights and a kit-based assembly, allowing straightforward field installation and adjustments to match reference heights and widths listed in the IS2 catalogue.
Key dimensions include a product net height of 1692 mm, net width of 100 mm, and net depth of 46.9 mm, with reference height of 1800 mm and reference width options from 200 to 1200 mm. Package level one unit weighs 7.95 kg gross, facilitating logistics planning and on-site handling.
Yes. EM1801 is specifically described as a kit for intermediate uprights suitable for cable containers or double-door ABB IS2 enclosures, enabling flexible enclosure configurations without bespoke fabrication.
EM1801 ships with a CE Declaration of Conformity, RoHS information (dated 20250108), and a REACH declaration, together with WEEE classification indicating its category. These certifications support European market approvals and ongoing regulatory compliance.
Customers benefit from documented guidance in the IS2 Enclosures Technical Catalogue 2024 and the installation manual 1STM604121R0006, enabling faster commissioning and fewer field corrections. The durable galvanized steel construction and standard uprights reduce maintenance costs and enable scalable panel upgrades, delivering favorable total cost of ownership over the system life.
