ABB EM1802 Control and Automation Board - CE RoHS
Part Number: EM1802
Quick Summary
ABB EM1802 is a control and automation board kit designed for uprights in IS2 Enclosures used in automation projects. It addresses common pain points like limited enclosure adaptability and lengthy wiring during panel assembly. The solution carries CE, RoHS, and REACH declarations, with ETIM and eClass classifications providing regulatory and interoperability confidence. With galvanized steel construction and a kit-based mounting approach, it speeds installation, reduces total cost of ownership, and delivers durable, standards-compliant control panels for demanding industrial environments.
Product Information
Extended Description

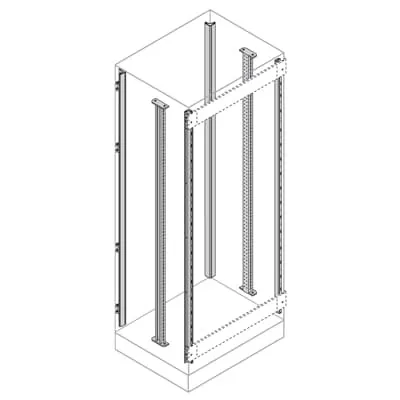

EM1802 ABB: Uprights for configuration with compartments H=1800mm
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Configuration Type
2. Uprights
Enclosure Type
Kit - uprights for configuration with compartments
Mounting Type
Kit
Product Type
5B5B20B220
Material
Galvanized Steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
400 mm
Product Net Height
1700 mm
Product Net Depth / Length
50 mm
Product Net Weight
23.070 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
23.540 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000386 - Mounting rail/-profile
ETIM 9
EC000386 - Mounting rail/-profile
eClass
V11.1 : 27400501
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The EM1802 uprights kit enables a modular, configurable enclosure system, reducing现场 rework and enabling rapid panel customization for IS2 Enclosures for Automation. This translates to faster project delivery and lower assembly costs in factory automation projects. Feature → Business Impact → Application: Galvanized steel sheet construction delivers corrosion resistance and durable performance in harsh industrial environments, extending panel life and lowering replacement frequency for control systems in manufacturing lines. Feature → Business Impact → Application: Dimensionally flexible with a 400 mm net width and a range of reference depths and widths (300–1000 mm depth; 400–1200 mm width) ensures compatibility with multiple IS2 enclosure configurations, simplifying procurement and installation. Feature → Business Impact → Application: Regulatory compliance (CE, RoHS, REACH) and ETIM/eClass classifications reduce risk during audits and improve component interoperability across suppliers, enabling smoother procurement and cross-vendor integration. Feature → Business Impact → Application: Kit mounting type and uprights for configuration with compartments support quick, modular installations, minimizing downtime and enabling scalable control architectures for evolving automation needs.
Get a Quick Quote for a ABB EM1802
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EM1802?
Enquire Now
FAQs
EM1802 ships as a kit of uprights for IS2 Enclosures. Use the mounting kit and reference dimensions (widths 400–1200 mm, depths 300–1000 mm) to configure compartments. Follow the installation manual 1STM604121R0006 for step-by-step mounting and alignment to ensure proper fit and field wiring access.
Core specs include a 400 mm net width, 1700 mm net height, and 50 mm net depth. Reference height is 1800 mm with width options of 400/600/800/1000/1200 mm and depth options of 300/400/500/600/800/1000 mm. The kit uses galvanized steel and supports 2 uprights for compartment configuration.
Yes. EM1802 carries a CE Declaration of Conformity, RoHS information with a 20250108 RoHS date, and REACH declaration with a 20250108 date, ensuring regulatory compliance for European markets and sustainability requirements.
EM1802 is ideal for IS2 Enclosures for Automation where modular uprights with compartments are needed. It supports Control and Automation Board configurations and offers flexibility for scalable control panel designs in manufacturing lines and process automation environments.
The kit-based mounting simplifies assembly, enabling faster installation and easier maintenance. Its galvanized steel construction improves durability in harsh environments, while CE/RoHS/REACH compliance mitigates regulatory risk and supports long-term lifecycle cost reductions for panel builders.
